RD30ES - Zener diode

Download the RD30ES datasheet PDF. This datasheet also covers the RD3.0ES variant, as both devices belong to the same zener diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1. DO-34 Glass sealed package This diode can be inserted into a PC board with a shorter pitch（5mm） 2. Planar process 3. Vz applied E24 standard.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (RD3.0ES-WEJ.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number RD30ES
Manufacturer WEJ
File Size 856.28 KB
Description Zener diode
Datasheet download datasheet RD30ES Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RD30ES ZENER DIODES EIC
RD30ES Zener Diode NEC
RD30E Zener diode Excel Semiconductor
RD30E SILICON ZENER DIODES EIC
RD30E Zener Diode NEC

Other Datasheets by WEJ

Part Number Description
RD3.0ES Zener diode
RD3.3ES Zener diode
RD3.6ES Zener diode
RD3.9ES Zener diode
RD33ES Zener diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

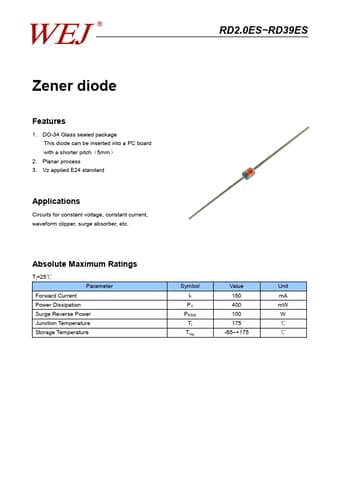

RD2.0ES~RD39ES Zener diode Features 1. DO-34 Glass sealed package This diode can be inserted into a PC board with a shorter pitch（5mm） 2. Planar process 3. Vz applied E24 standard Applications Circuits for constant voltage, constant current, waveform clipper, surge absorber, etc. Absolute Maximum Ratings Tj=25℃ Parameter Forward Current Power Dissipation Surge Reverse Power Junction Temperature Storage Temperature Symbol If PV PRSM Tj Tstg Value 150 400 100 175 -65~+175 Unit mA mW W ℃ ℃ RD2.0ES~RD39ES Electrical Characteristics Tj=25℃ Type Number Suffix RD 2.0ES RD 2.2 ES RD 2.4 ES RD 2.7 ES RD 3.0 ES RD 3.3 ES RD 3.6 ES RD 3.9 ES RD 4.3 ES RD 4.7 ES RD 5.1 ES RD 5.6 ES RD 6.2 ES A B A B A B A B A B A B A B A B A B C A B C A B C A B C A B C Zener voltage Vz (V) Min.
