2SD2136 - NPN Transistor

WEJ

📥 Download Datasheet

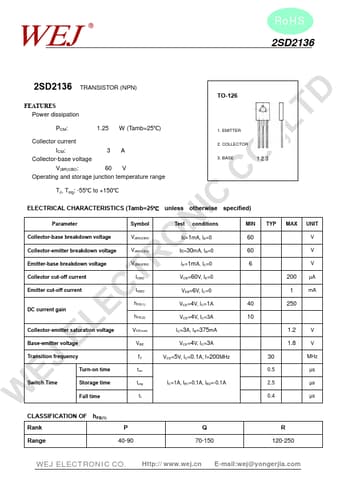

2SD2136 Datasheet Preview — Preview of 2SD2136 PDF

Datasheet Details

Part number	2SD2136
Manufacturer	WEJ
File Size	133.31 KB
Description	NPN Transistor
Datasheet	2SD2136-WEJ.pdf

2SD2136 Product details

Features

Power dissipation TPCM: 1.25 W (Tamb=25℃) . ,LCollector current ICM: Collector-base voltage 3A OV(BR)CBO: 60 V Operating and storage junction temperature range CTJ, Tstg: -55℃ to +150℃ TO-126 1.
