DZ23C6V2 - Surface Mount Zener Diode

Product Overview

WEITRON

📥 Download Datasheet

DZ23C6V2 Surface Mount Zener Diode by WEITRON - Datasheet Preview — Datasheet preview – DZ23C6V2

Datasheet Details

Part number	DZ23C6V2
Manufacturer	WEITRON
File Size	536.50 KB
Description	Surface Mount Zener Diode
Datasheet	DZ23C6V2 Datasheet
Note	This datasheet PDF includes multiple part numbers: DZ23C6V2, DZ23C2V7. Please refer to the document for exact specifications by model.
Additional preview pages of the DZ23C6V2 datasheet.

Product details

Features

Dual zeners common cathode con guration.
300mW Power Dissipation.
Ideally suited for automated insertion.

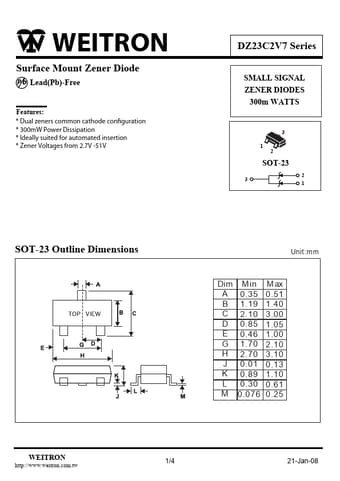

Zener Voltages from 2.7V -51V DZ23C2V7 Series SMALL SIGNAL ZENER DIODES 300m WATTS 3 1 2 SOT-23 3 2 1 SOT-23 Outline Dimensions Unit :m m Dim M in M ax A 0.35 0.51 B 1.19 1.40 C 2.10 3.00 D 0.85 1.05 E 0.46 1.00 G 1.70 2.10 H 2.70 3.10 J 0.01 0.13 K 0.89 1.10 L 0.30 0.61 M 0.076 0.25.
