2N60P - N-Channel Power MOSFET

Download the 2N60P datasheet PDF (2N60 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for n-channel power mosfet.

Description

This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.

Features

  • 2.0A, 600V,RDS(ON) =5.0 Ohms @VGS =10V.
  • Low gate charge.
  • Low Crss 1 GATE.
  • Fast switching.
  • Improved dv/dt capability 3 SOURCE DRAIN SOURCE.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2N60-WEITRON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 2N60P
Manufacturer WEITRON
File Size 702.82 KB
Description N-Channel Power MOSFET
Datasheet download datasheet 2N60P Datasheet

📁 Similar Datasheet

  • 2N60 - 2A 600V N-channel Enhancement Mode Power MOSFET (ROUM)
  • 2N60 - N-Channel MOSFET (HAOHAI)
  • 2N60 - TO-251 N-Channel MOSFET (INCHANGE)
  • 2N60 - N-CHANNEL MOSFET (UTC)
  • 2N60 - N-Channel Power MOSFET (nELL)
  • 2N60 - N-Channel Power MOSFET (yecheng technology)
  • 2N60 - 600V N-Channel Power MOSFET (JINAN JINGHENG)
  • 2N60 - N-CHANNEL MOSFET (ART CHIP)
  • 2N60 - N-Channel MOSFET (PINGWEI)
  • 2N60-C - N-CHANNEL MOSFET (UTC)
Other Datasheets by WEITRON
  • 2N60 - N-Channel Power MOSFET
  • 2N60F - N-Channel Power MOSFET
  • 2N60I - N-Channel Power MOSFET

Full PDF Text Transcription

Click to expand full text

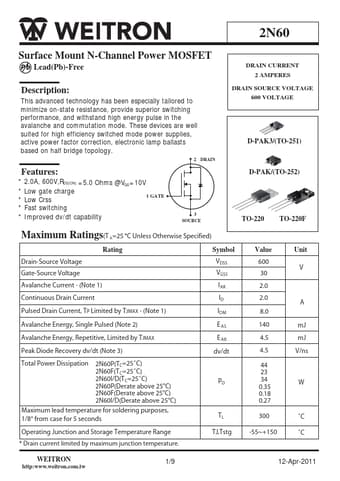

2N60 Surface Mount N-Channel Power MOSFET P b Lead(Pb)-Free DRAIN CURRENT 2 AMPERES Description: This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency switched mode power supplies, active power factor correction, electronic lamp ballasts based on half bridge topology. 2 DRAIN Features: * 2.0A, 600V,RDS(ON) =5.
