ENH057Q1-600, ENH057Q1-350 - (ENH057Q1-xxx) Color TFT-LCD Module Features GENERAL DESCRIPTION

WEDC

📥 Download Datasheet

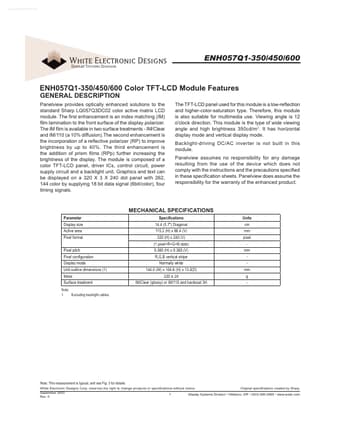

ENH057Q1-600 Datasheet Preview — This datasheet PDF includes multiple part numbers: ENH057Q1-600, ENH057Q1-350. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ENH057Q1-600, ENH057Q1-350
Manufacturer	WEDC
File Size	165.21 KB
Description	(ENH057Q1-xxx) Color TFT-LCD Module Features GENERAL DESCRIPTION
Datasheet	ENH057Q1-350_WEDC.pdf
Note	This datasheet PDF includes multiple part numbers: ENH057Q1-600, ENH057Q1-350. Please refer to the document for exact specifications by model.

ENH057Q1-600 Product details

Description

Panelview provides optically enhanced solutions to the standard Sharp LQ057Q3DC02 color active matrix LCD module.

Features

The TFT-LCD panel used for this module is a low-reﬂection and higher-color-saturation type. Therefore, this module is also suitable for multimedia use. Viewing angle is 12 o'clock direction. This module is the type of wide viewing angle and high brightness 350cd/m2. It has horizontal display mode and vertical display mode. Backlight-driving DC/AC inverter is not built in this module. Panelview assumes no responsibility for any damage resulting from the use of the device which does not comply wit.
