D99-6F5E2P1B3M0 RUGGEDIZED 5.6 DISPLAY HEAD ASSEMBLY

D99-6F5E2P1B3M0 Description

www.DataSheet4U.com White Electronic Designs Display Systems Division D99-6F5E2P1B3M0 AMLCD PRODUCT - MODEL LC056 RUGGEDIZED 5.6" DISPLAY HEAD ASSE.
Output Input Backlight heater return Input signal used to shutdown the Input lamp and heater power, the control circuitry will still be powered.

D99-6F5E2P1B3M0 Features

* Dual Mode NTSC (M) and PAL F Timing for RGB Video and NTSC Timing for Composite Video Supports Two Sets of Analog RGB Video Signals NTSC Composite or S-Video Signals Display Resolution 320 x 234 (NTSC) and 320 x 273 (PAL) Scan Reversal External Clock Mode D99-6F5E2P1B3M0 ABSOLUTE MAXIMUM RATINGS S

D99-6F5E2P1B3M0 Applications

* Our unique patented SBLR™ (Super Bright Low Reflectance) technology provides optimal readability even in bright sunlight. 5.6" TFT Color Active Matrix LCD Landscape Mode 4:3 Aspect Ratio ±55°(H); +35°/-55°(V) Viewing Angle @ 5:1 C/R 1/4 VGA 320 x 234 Resolution Accepts 2 Channels RGB Analog Input A

📥 Download Datasheet

Preview of D99-6F5E2P1B3M0 PDF

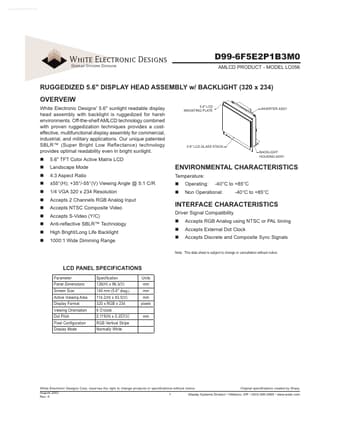

datasheet Preview Page 2 datasheet Preview Page 3
