WS7.5P4SMA - Power Transient Voltage Suppressor

Download the WS7.5P4SMA datasheet PDF. This datasheet also covers the WS7.0P4SMA variant, as both devices belong to the same power transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • WSxxP4SMA(-B) Power Transient Voltage Suppressor.
  • 400 watts Peak Pulse Power (10/1000μs).
  • Unidirectional and Bidirectional Protection.
  • Fast Response Time : Typically < 1ns.
  • Excellent Clamping Capability.
  • Glass Passivated Junction.
  • Built-in Strain relief.
  • Low inductance.
  • Low profile package.
  • High temperature solder:260℃/10 seconds at terminal Mechanical Characteristics.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (WS7.0P4SMA-WAYON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number WS7.5P4SMA
Manufacturer WAYON
File Size 710.96 KB
Description Power Transient Voltage Suppressor
Datasheet download datasheet WS7.5P4SMA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
WS7010AD High-side driver Winsemi
WS7010AF High-side driver Winsemi
WS7106 3 Digit LCD/LED Display A/D Converters Wing Shing
WS7107 3 Digit LCD/LED Display A/D Converters Wing Shing
WS7117 High-performance offline PWM control switch WINSEMI

Other Datasheets by WAYON

Part Number Description
WS7.5P4SMA-B Power Transient Voltage Suppressor
WS7.5P6SMB Power Transient Voltage Suppressor
WS7.5P6SMB-B Power Transient Voltage Suppressor
WS7.0P4SMA Power Transient Voltage Suppressor
WS7.0P4SMA-B Power Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

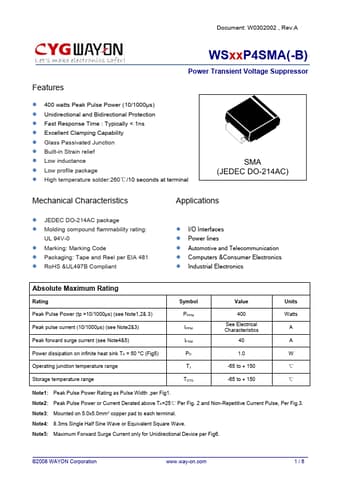

Document: W0302002 , Rev:A Features WSxxP4SMA(-B) Power Transient Voltage Suppressor  400 watts Peak Pulse Power (10/1000μs)  Unidirectional and Bidirectional Protection  Fast Response Time : Typically < 1ns  Excellent Clamping Capability  Glass Passivated Junction  Built-in Strain relief  Low inductance  Low profile package  High temperature solder:260℃/10 seconds at terminal Mechanical Characteristics Applications  JEDEC DO-214AC package  Molding compound flammability rating: UL 94V-0  Marking: Marking Code  Packaging: Tape and Reel per EIA 481  RoHS &UL497B Compliant  I/O Interfaces  Power lines  Automotive and Telecommunication  Computers &Consumer Electronics  Industrial Electronics Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power (tp
