WP3080KA - N-Channel Power MOSFET

Product Overview

📥 Download Datasheet

Datasheet preview – WP3080KA

Datasheet Details

Part number WP3080KA
Manufacturer WANSEMI
File Size 895.06 KB
Description N-Channel Power MOSFET
Datasheet download datasheet WP3080KA Datasheet

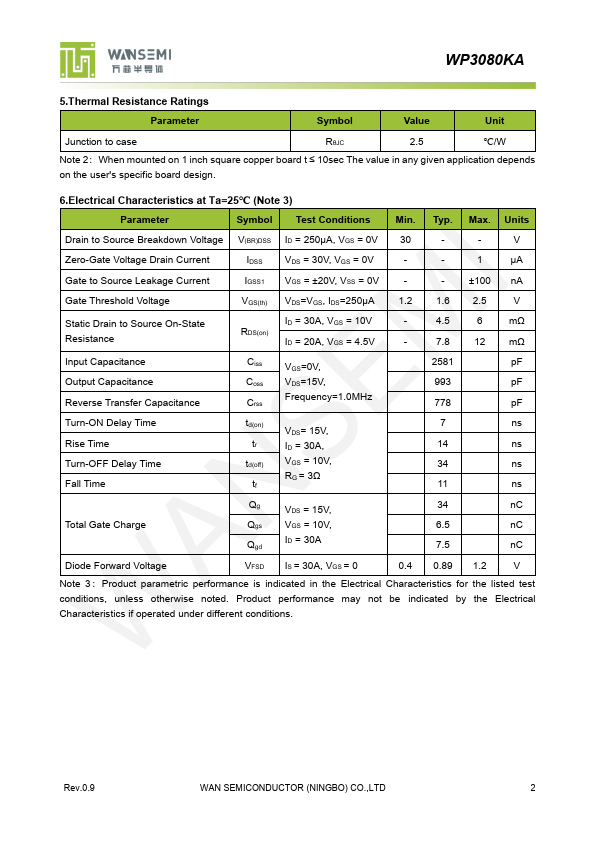

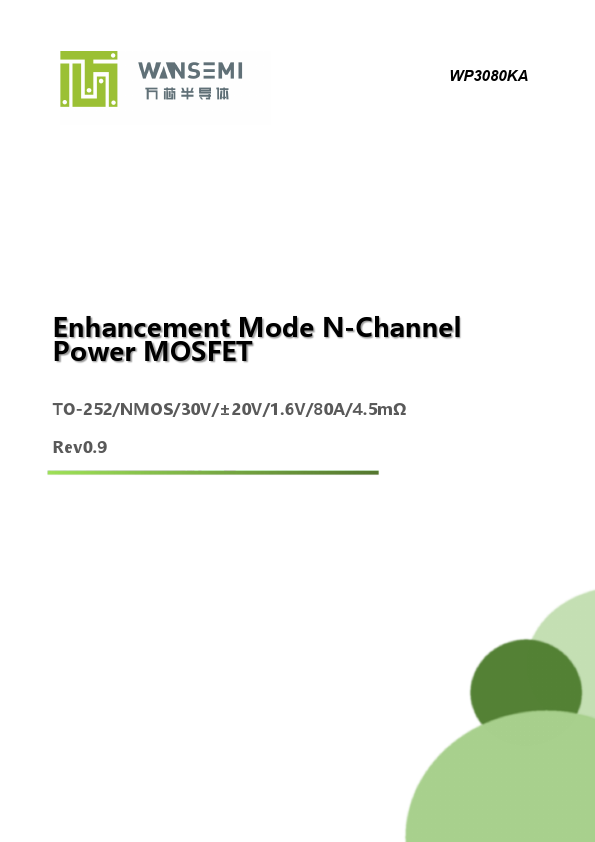

Additional preview pages of the WP3080KA datasheet.

Product details

Description

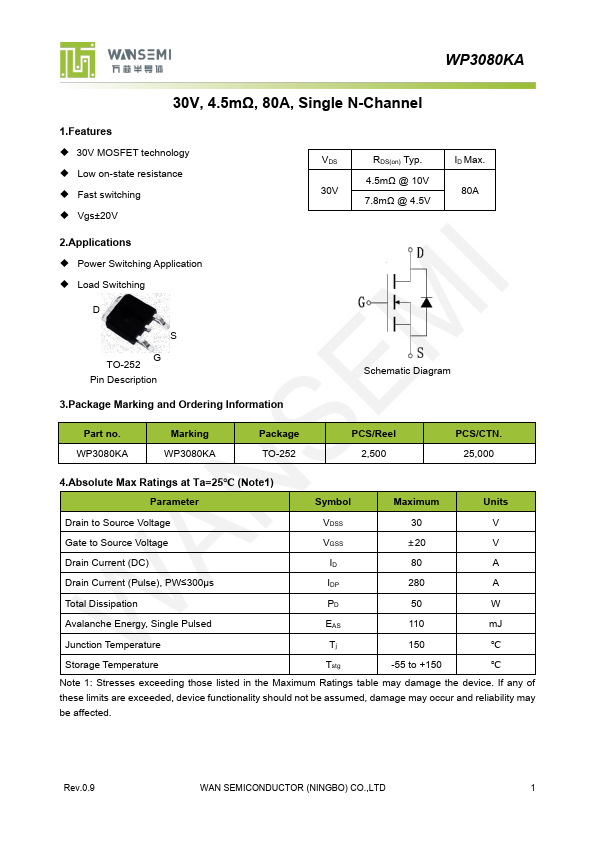

3.Package Marking and Ordering Information Schematic Diagram Part no.WP3080KA Marking WP3080KA Package TO-252 PCS/Reel 2,500 PCS/CTN.25,000 4.Absolute Max Ratings at Ta=25℃ (Note1) Parameter Symbol Maximum Units Drain to Source Voltage VDSS 30 V Gate to Source Voltage VGSS ±20 V Drain Current (DC) ID 80 A Drain Current (Pulse), PW≤300μs IDP 280 A Total Dissipation PD 50 W Avalanche Energy, Single Pulsed EAS 110 mJ Junction Temperature Tj 150 ℃ Storage Te
