WP2090KPA - N-Channel Power MOSFET

The WP2090KPA by WANSEMI is a N-Channel Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	WP2090KPA
Manufacturer	WANSEMI
File Size	974.11 KB
Description	N-Channel Power MOSFET
Datasheet	WP2090KPA-WANSEMI.pdf

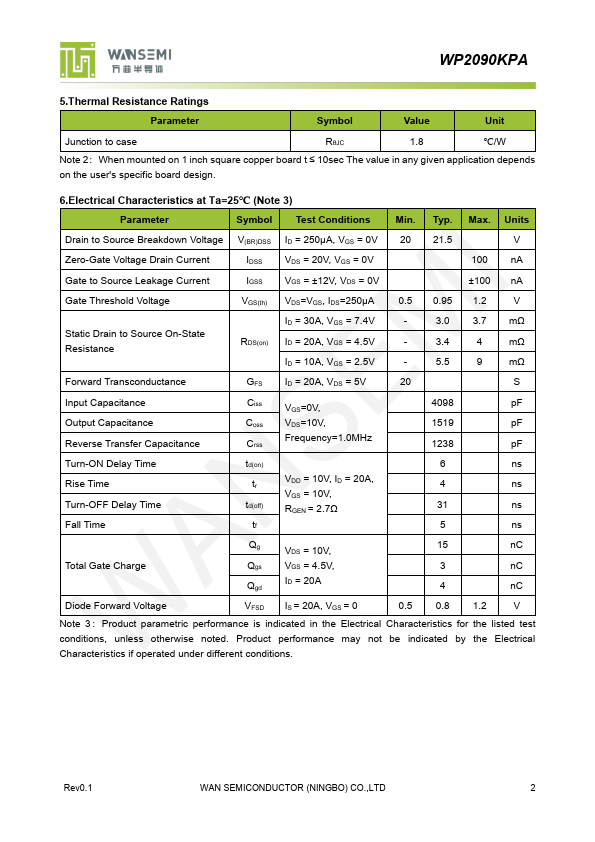

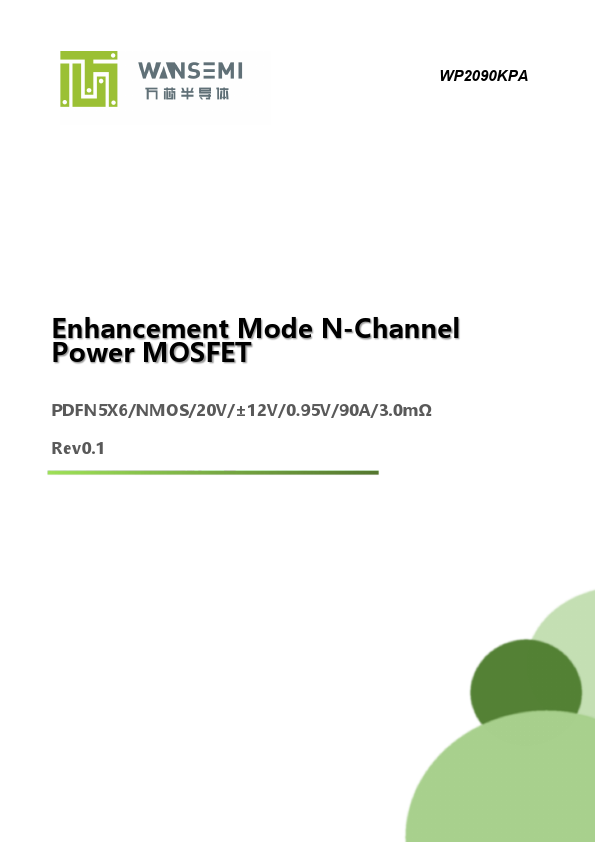

Additional preview pages of the WP2090KPA datasheet.

WP2090KPA Product details

Description

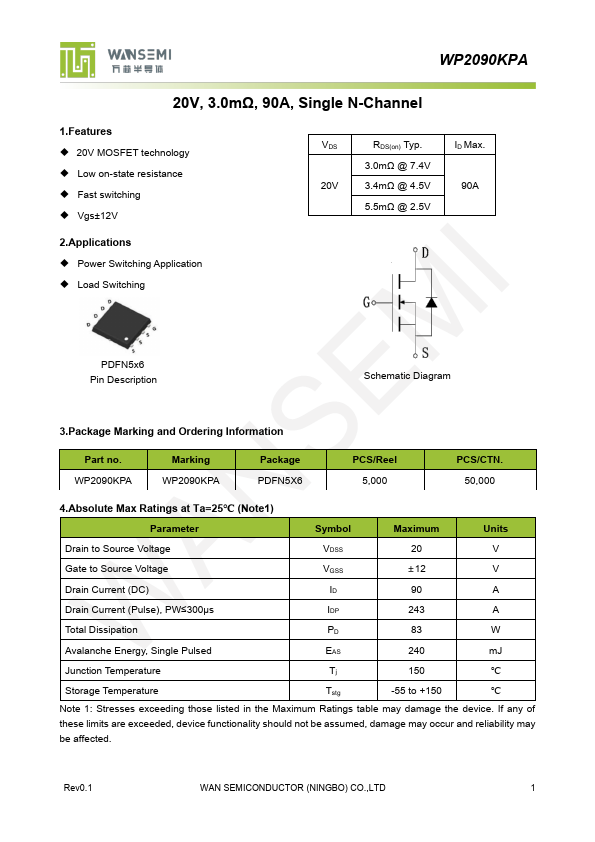

Schematic Diagram 3.Package Marking and Ordering Information Part no.WP2090KPA Marking WP2090KPA Package PDFN5X6 PCS/Reel 5,000 PCS/CTN.50,000 4.Absolute Max Ratings at Ta=25℃ (Note1) Parameter Symbol Maximum Units Drain to Source Voltage VDSS 20 V Gate to Source Voltage VGSS ±12 V Drain Current (DC) ID 90 A Drain Current (Pulse), PW≤300μs IDP 243 A Total Dissipation PD 83 W Avalanche Energy, Single Pulsed EAS 240 mJ Junction Temperature Tj 150 ℃ Storag

Features

20V MOSFET technology.
Low on-state resistance.
Fast switching.
Vgs±12V VDS RDS(on) Typ. 3.0mΩ @ 7.4V 20V 3.4mΩ @ 4.5V 5.5mΩ @ 2.5V 2.
