VS8601 - 5.5V 6A Dual Channel Load Switch

Product Overview

📥 Download Datasheet

VS8601 5.5V 6A Dual Channel Load Switch by Viva Electronics - Datasheet Preview — Datasheet preview – VS8601

Datasheet Details

Part number	VS8601
Manufacturer	Viva Electronics
File Size	485.20 KB
Description	5.5V 6A Dual Channel Load Switch
Datasheet	VS8601 Datasheet

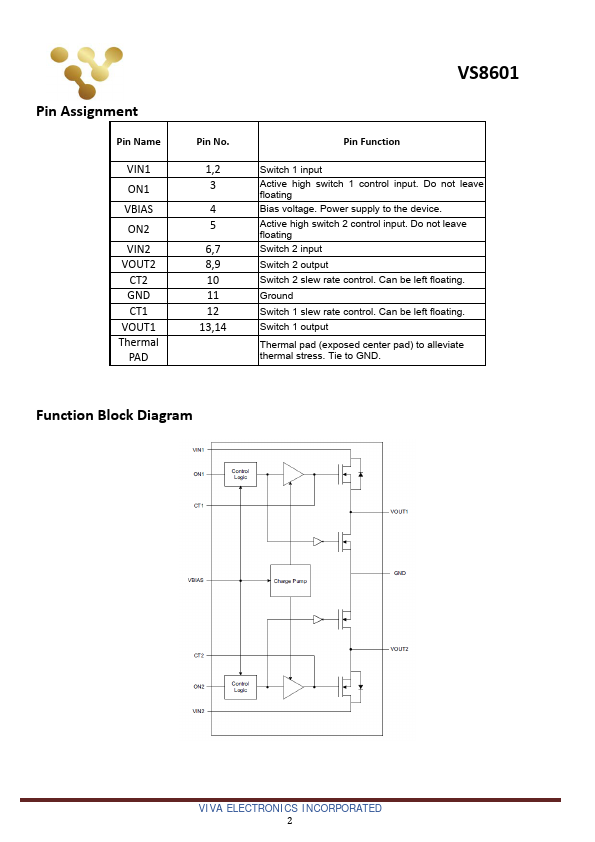

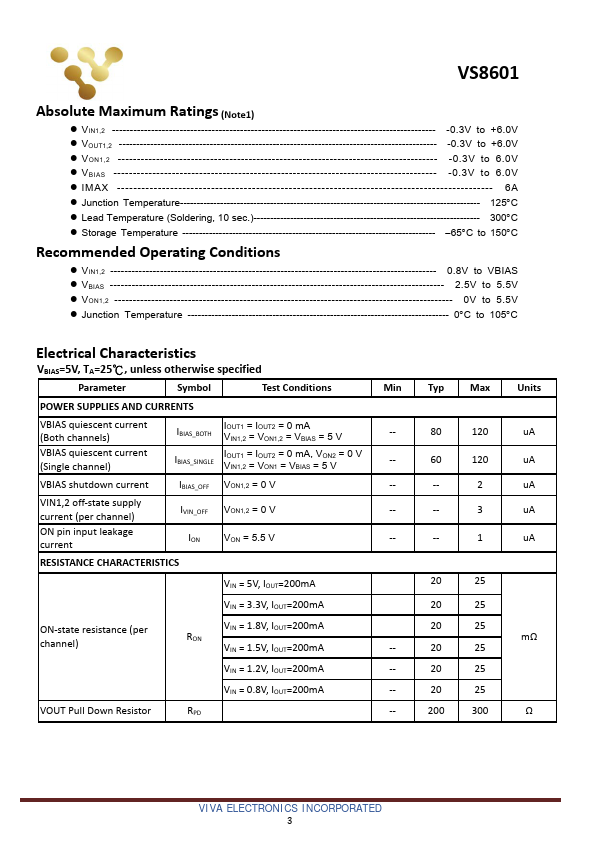

Additional preview pages of the VS8601 datasheet.

Product details

Description

The VS8601 is a small, low RON, dual‐channel load switch with controlled turnon.

Features

Input Voltage Range: 0.8 V to 5.5 V.
Integrated Dual‐Channel Load Switch.
On‐Resistance 20mΩ per Channel.
6‐A Maximum Continuous Switch Current per Channel.
Low Quiescent Current (80uA Both Channels).
Configurable Rise Time (CT pin).
Quick Output Discharge (QOD) (Optional).
DFN3X2 Package With Thermal Pad.
Thermal Protection Typical.
