VA9105 - Mono Class D Amplifier

Product Overview

Part number	VA9105
Manufacturer	Viva Electronics
File Size	853.08 KB
Description	Mono Class D Amplifier
Datasheet	VA9105 Datasheet

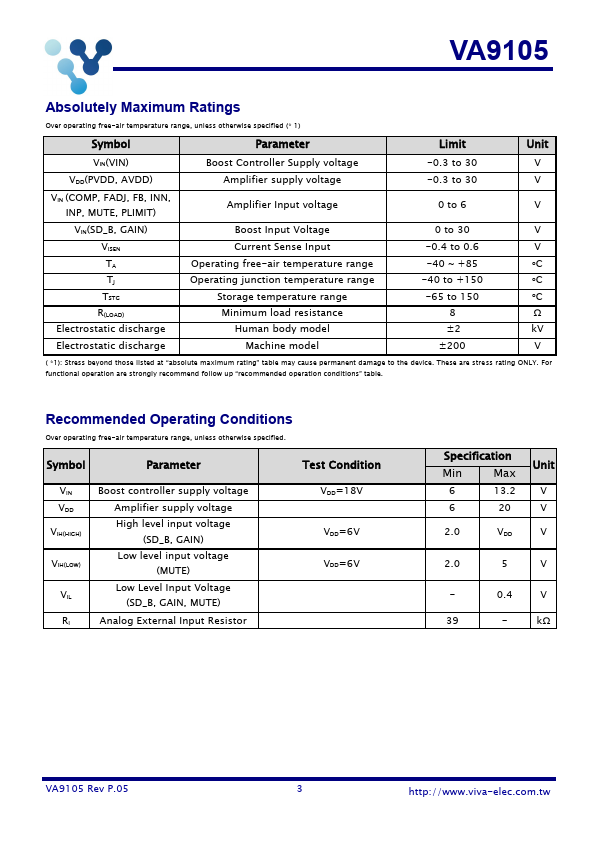

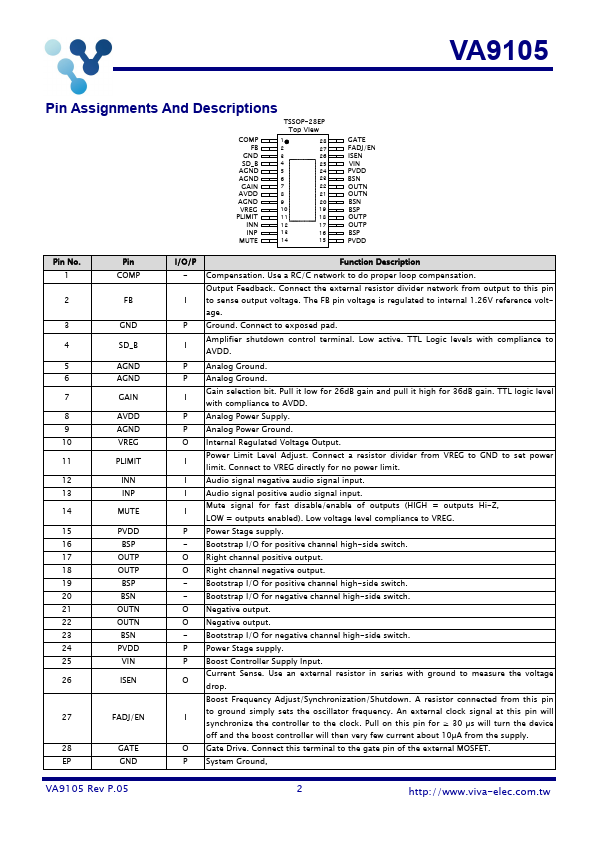

Additional preview pages of the VA9105 datasheet.

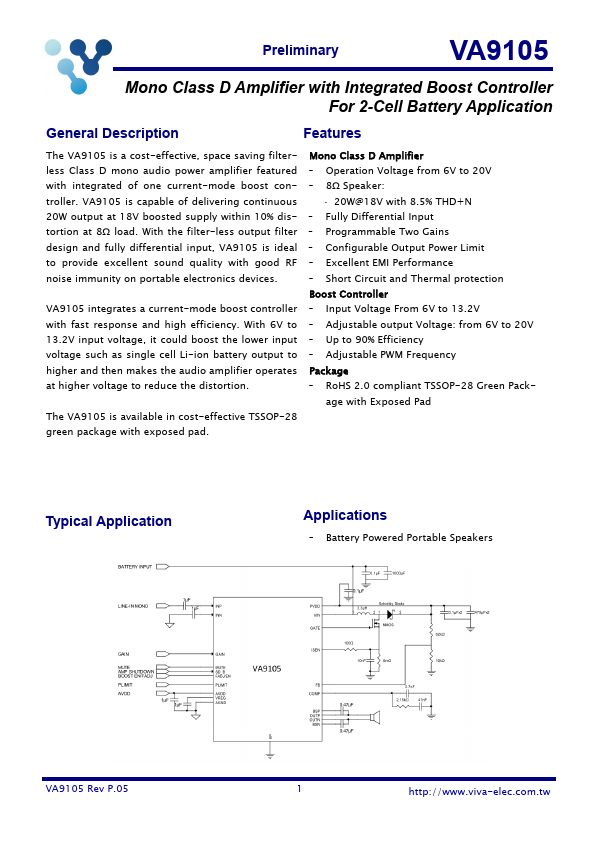

The VA9105 is a cost-effective, space saving filterless Class D mono audio power amplifier featured with integrated of one current-mode boost controller. VA9105 is capable of delivering continuous 20W output at 18V boosted supply within 10% distortion at 8Ω load. With the filter-less output filter design and fully differential input, VA9105 is ideal to provide excellent sound quality with good RF noise immunity on portable electronics devices. VA9105 integrates a current-mode boost controller w.
