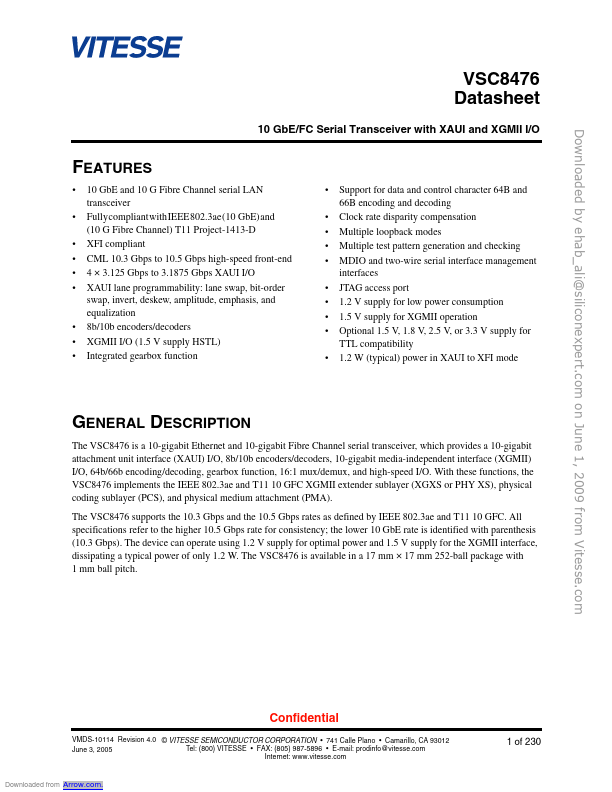

VSC8476 - 10 GbE/FC Serial Transceiver

Vitesse

VSC8476 Datasheet Preview — Preview of VSC8476 PDF

Datasheet Details

Part number	VSC8476
Manufacturer	Vitesse
File Size	5.58 MB
Description	10 GbE/FC Serial Transceiver
Datasheet	VSC8476-Vitesse.pdf

VSC8476 Product details

Description

The VSC8476 is a 10-gigabit Ethernet and 10-gigabit Fibre Channel serial transceiver, which provides a 10-gigabit attachment unit interface (XAUI) I/O, 8b/10b encoders/decoders, 10-gigabit media-independent interface (XGMII) I/O, 64b/66b encoding/decoding, gearbox function, 16:1 mux/demux, and high-speed I/O.

Features

10 GbE and 10 G Fibre Channel serial LAN transceiver.
FullycompliantwithIEEE802.3ae(10 GbE)and (10 G Fibre Channel) T11 Project-1413-D.
XFI compliant.
CML 10.3 Gbps to 10.5 Gbps high-speed front-end.
4 × 3.125 Gbps to 3.1875 Gbps XAUI I/O.
XAUI lane programmability: lane swap, bit-order swap, invert, deskew, amplitude, emphasis, and equalization.
8b/10b encoders/decoders.
XGMII I/O (1.5 V supply HSTL).
Integrated g.
