VSC834 2.5Gb/s 17 x 17 Crosspoint Switch

Vitesse Semiconductor

Description

www.DataSheet4U.com VITESSE SEMICONDUCTOR CORPORATION Datasheet VSC834 .
The VSC834 is a monolithic 17x17 asynchronous crosspoint switch designed to carry broadband data streams at up to 2.

📥 Download Datasheet

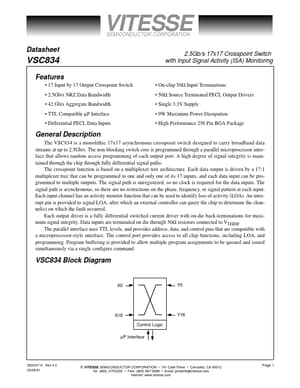

VSC834 Datasheet Preview — Preview of VSC834 PDF

Datasheet Specifications

Part number: VSC834
Manufacturer: Vitesse Semiconductor
File Size: 191.66 KB
Datasheet: VSC834_VitesseSemiconductor.pdf
Description: 2.5Gb/s 17 x 17 Crosspoint Switch

Features

* 17 Input by 17 Output Crosspoint Switch
* 2.5Gb/s NRZ Data Bandwidth
* 42 Gb/s Aggregate Bandwidth
* TTL Compatible µP Interface
* Differential PECL Data Inputs 2.5Gb/s 17x17 Crosspoint Switch with Input Signal Activity (ISA) Monitoring
* On-chip 5

Applications

* (30-150mV p-p input level). Although uncalibrated for nominal level, gain and linearity, the VHYS pin can be externally set to adjust the threshold level over the entire range of the input signal, from zero to the maximum level allowed at the input. Table 2: Memory Map Address 00h 01h 10h 11h 20h
