VSC7123 Datasheet - Vitesse Semiconductor

VSC7123 10-Bit Transceiver

The VSC7123 is a full-speed Fibre Channel and Gigabit Ethernet Transceiver with industry-standard pinouts. The VSC7123 accepts 10-bit 8B/10B encoded transmit data, latches it on the rising edge of REFCLK and serializes the data onto the TX PECL differential outputs at a baud rate which is 10 times t.

VSC7123 Features

* 802.3z Gigabit Ethernet-Compliant 1.25 Gb/s Transceiver

* ANSI X3T11 Fibre Channel-Compliant 1.0625 Gb/s Transceiver

* 0.98 to 1.36 Gb/s Full-Duplex Operation

* 10-Bit TTL Interface for Transmit and Receive Data 10-Bit Transceiver for Fibre Channel and Gigabit Ethe

VSC7123_ETC.pdf

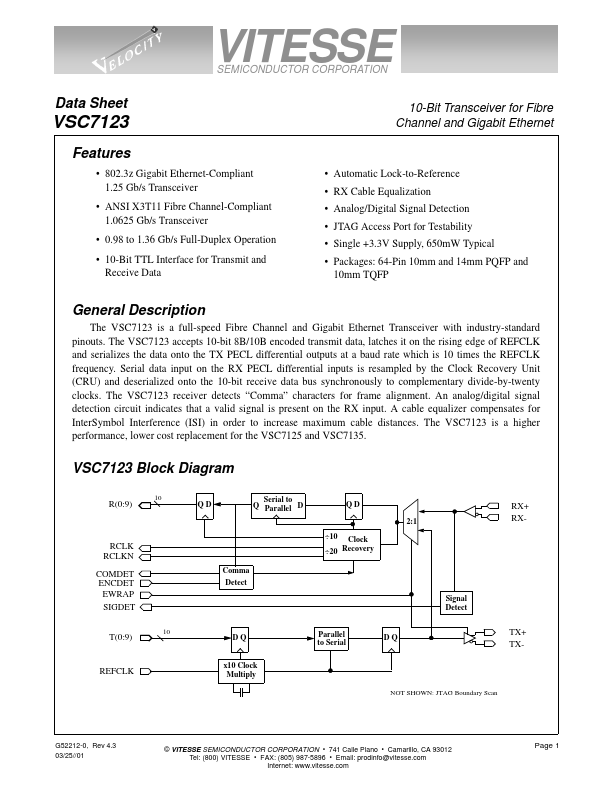

Preview of VSC7123 PDF

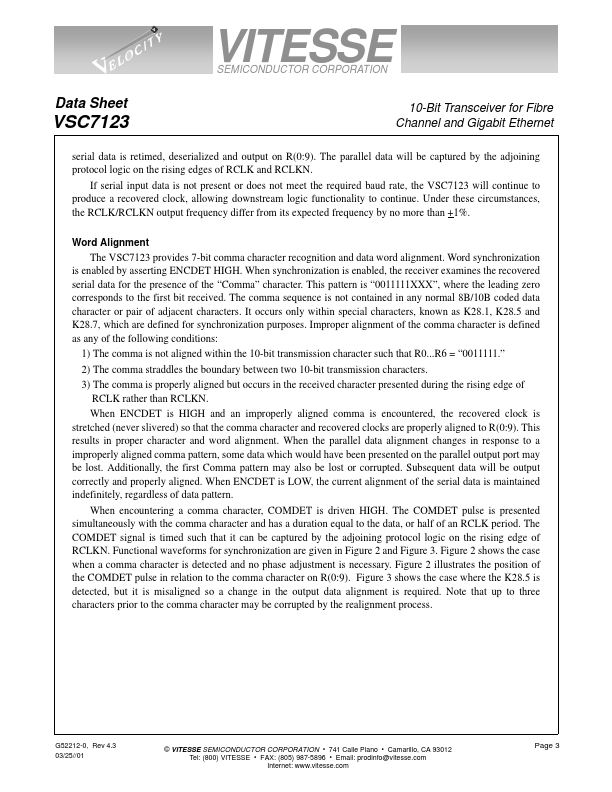

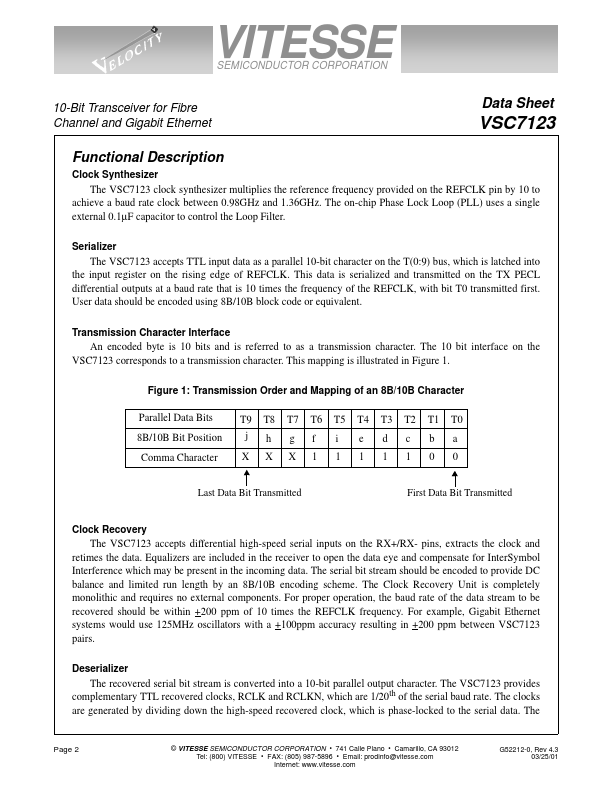

VSC7123 Datasheet Preview Page 2 VSC7123 Datasheet Preview Page 3

Datasheet Details

Part number:

VSC7123

Manufacturer:

Vitesse Semiconductor

File Size:

208.01 KB

Description:

10-bit transceiver.
