ZMY4V3 - Zener Diodes

Download the ZMY4V3 datasheet PDF. This datasheet also covers the ZMY3V9 variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Silicon planar power Zener diodes.
  • For use in stablilizing and clipping circuits with high power rating.
  • The Zener voltages are graded according to the international E 24 standard. Smaller voltage tolerances are available upon request.
  • These diodes are also available in the DO-41 case with the type designation ZPY3V9 to ZPY75.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ZMY3V9-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ZMY4V3
Manufacturer Vishay
File Size 116.04 KB
Description Zener Diodes
Datasheet download datasheet ZMY4V3 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ZMY4V3 SILICON PLANAR POWER ZENER DIODES SEMTECH
ZMY4V7 SILICON PLANAR POWER ZENER DIODES SEMTECH
ZMY4.3 ZENER DIODES General Semiconductor
ZMY4.3 ZENER DIODES EIC
ZMY4.3C ZENER DIODES EIC

Other Datasheets by Vishay

Part Number Description
ZMY4V7 Zener Diodes
ZMY43 Zener Diodes
ZMY47 Zener Diodes
ZMY10 Zener Diodes
ZMY100 Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

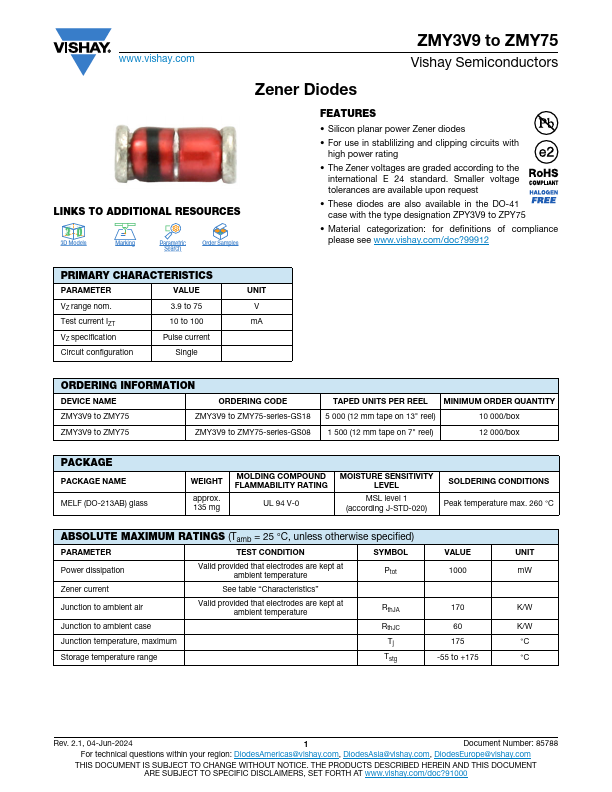

www.vishay.com ZMY3V9 to ZMY75 Vishay Semiconductors Zener Diodes LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples FEATURES • Silicon planar power Zener diodes • For use in stablilizing and clipping circuits with high power rating • The Zener voltages are graded according to the international E 24 standard. Smaller voltage tolerances are available upon request • These diodes are also available in the DO-41 case with the type designation ZPY3V9 to ZPY75 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. 3.
