VSSA36S - Surface Mount Trench MOS Barrier Schottky Rectifier

Features

  • TMBS®.
  • Low profile package.
  • Ideal for automated placement.
  • Trench MOS Schottky technology.
  • Low power losses, high efficiency.
  • Low forward voltage drop.
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
  • Not recommended for PCB bottom side wave mounting DO-214AC (SMA).
  • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC.
  • Halogen-free according to IEC 61249-2-21 definition 3.0 A 60.

📥 Download Datasheet

Datasheet Details

Part number VSSA36S
Manufacturer Vishay
File Size 138.21 KB
Description Surface Mount Trench MOS Barrier Schottky Rectifier
Datasheet download datasheet VSSA36S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VSSA310 Surface Mount Trench MOS Barrier Schottky Rectifier Taychipst
VSSA3L6S Surface Mount Trench MOS Barrier Schottky Rectifier Taychipst
VSSA210 Surface Mount Trench MOS Barrier Schottky Rectifier Taychipst
VSSR Dual-In-Line Resistor Networks Vishay Siliconix
VSSRC 25 or 50 Mil Pitch / T-Filter Resistor/Capacitor Networks Vishay Siliconix

Other Datasheets by Vishay

Part Number Description
VSSA310S Surface Mount Trench MOS Barrier Schottky Rectifier
VSSA3L6S Surface Mount Trench MOS Barrier Schottky Rectifier
VSSA210 Surface Mount Trench MOS Barrier Schottky Rectifier
VSSAF3L45 Surface Mount Trench MOS Barrier Schottky Rectifier
VSSAF515 Surface Mount Trench MOS Barrier Schottky Rectifier

Full PDF Text Transcription

Click to expand full text

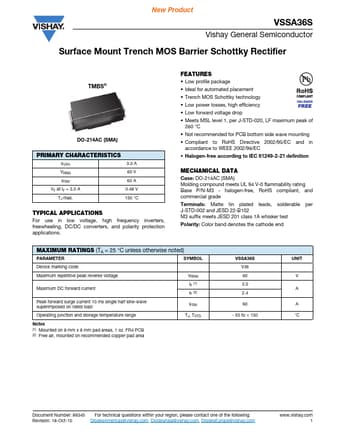

New Product VSSA36S Vishay General Semiconductor Surface Mount Trench MOS Barrier Schottky Rectifier FEATURES TMBS® • Low profile package • Ideal for automated placement • Trench MOS Schottky technology • Low power losses, high efficiency • Low forward voltage drop • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • Not recommended for PCB bottom side wave mounting DO-214AC (SMA) • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC • Halogen-free according to IEC 61249-2-21 definition 3.0 A 60 V 60 A 0.48 V 150 °C PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 3.0 A TJ max.
