VSKJ91-14P, VSKE91-10P - Power Modules Standard Diodes

Vishay

VSKJ91-14P Datasheet Preview — This datasheet PDF includes multiple part numbers: VSKJ91-14P, VSKE91-10P. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VSKJ91-14P, VSKE91-10P
Manufacturer	Vishay ↗
File Size	259.07 KB
Description	Power Modules Standard Diodes

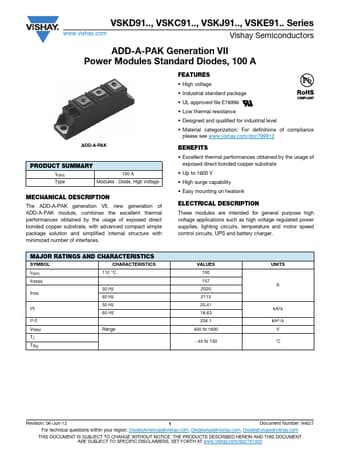

Datasheet	VSKE91-10P-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VSKJ91-14P, VSKE91-10P. Please refer to the document for exact specifications by model.

VSKJ91-14P Product details

Description

The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct bonded copper substrate, with advanced compact simple package solution and simplified internal structure with minimized number of interfaces.

Features

High voltage.
Industrial standard package.
UL approved file E78996.
Low thermal resistance.
Designed and qualified for industrial level.
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.
