VSKH57-16P, VSKH42-10P ADD-A-PAK Generation VII Power Modules

Vishay

Description

www.vishay.com VSK.41.., VSK.56..Series Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Thyristor/Diode and Thyristor/Thyristor, 45 A/.
The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct.

📥 Download Datasheet

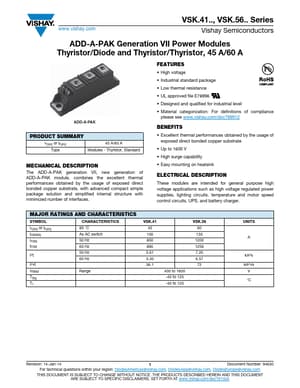

VSKH57-16P Datasheet Preview — This datasheet PDF includes multiple part numbers: VSKH57-16P, VSKH42-10P. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VSKH57-16P, VSKH42-10P
Manufacturer: Vishay ↗
File Size: 499.39 KB
Datasheet: VSKH42-10P-Vishay.pdf
Description: ADD-A-PAK Generation VII Power Modules
Note: This datasheet PDF includes multiple part numbers: VSKH57-16P, VSKH42-10P.
Please refer to the document for exact specifications by model.

Features

* High voltage
* Industrial standard package
* Low thermal resistance
* UL approved file E78996
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 BENEFITS

Applications

* such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS, and battery charger. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IT(AV) or IF(AV) IO(RMS) ITSM, IFSM I2t I2t VRRM TStg TJ 85 °C As AC switch 50 Hz 60 Hz 50 Hz 60 H
