VSKH57-12P - ADD-A-PAK Generation VII Power Modules

Download the VSKH57-12P datasheet PDF (VSKH42-10P included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for add-a-pak generation vii power modules.

Description

The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct bonded copper substrate, with advanced compact simple package solution and simplified internal structure with minimized number of interfaces.

Features

  • High voltage.
  • Industrial standard package.
  • Low thermal resistance.
  • UL approved file E78996.
  • Designed and qualified for industrial level.
  • Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VSKH42-10P-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VSKH57-12P
Manufacturer Vishay
File Size 499.39 KB
Description ADD-A-PAK Generation VII Power Modules
Datasheet download datasheet VSKH57-12P Datasheet

📁 Similar Datasheet

Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

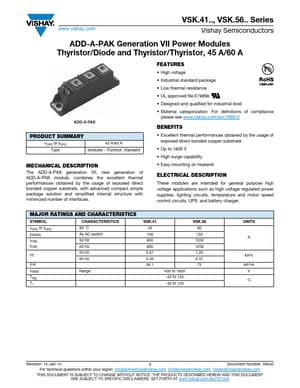

www.vishay.com VSK.41.., VSK.56.. Series Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Thyristor/Diode and Thyristor/Thyristor, 45 A/60 A ADD-A-PAK PRODUCT SUMMARY IT(AV) or IF(AV) Type 45 A/60 A Modules - Thyristor, Standard MECHANICAL DESCRIPTION The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct bonded copper substrate, with advanced compact simple package solution and simplified internal structure with minimized number of interfaces. FEATURES • High voltage • Industrial standard package • Low thermal resistance • UL approved file E78996 • Designed and qualified for industrial level • Material categorization: For definitions of compliance please see www.vishay.
