VSGR200 - Stainless Steel Power Resistor

Download the VSGR200 datasheet PDF (VSGR050 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for stainless steel power resistor.

Description

Part Number: VSGR0501008K90LX00 VSGR 0 5 0 1 0 0 8 K 9 0 L X 0 0 MODEL VARIANT VALUE VSGR Examples: 050 = 5 kW 085 = 8.5 kW 100 = 10 kW SPC = customized 3 digit value 1 digit multiplier MULTIPLIER 7 = 10-3 8 = 10-2 9 = 10-1 0 = 100 1 = 101 2 = 102 3 = 103 Pr

Features

High power capability up to 20 kW at 40 °C (1).
Operating temperature range: -25 °C to +250 °C.
Protection IP00 to IP23.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Note (1) Max. permissible operating voltage UL = 600 V, EN 1000 VDC, testing voltage 2.7 kVAC 1 s, unforced cooling.

Vishay

📥 Download Datasheet

Datasheet Details

Part number	VSGR200
Manufacturer	Vishay
File Size	159.15 KB
Description	Stainless Steel Power Resistor
Datasheet	VSGR200 Datasheet

📁 Similar Datasheet

Other Datasheets by Vishay

VSGR050 - Stainless Steel Power Resistor
VSGR100 - Stainless Steel Power Resistor
VSGR150 - Stainless Steel Power Resistor

Full PDF Text Transcription

Click to expand full text

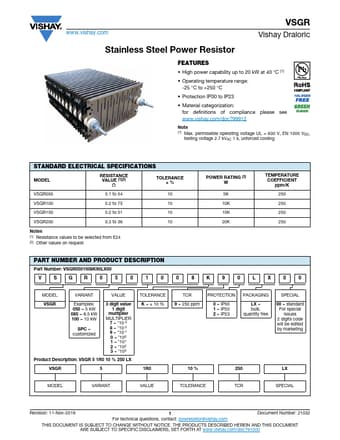

www.vishay.com VSGR Vishay Draloric Stainless Steel Power Resistor FEATURES • High power capability up to 20 kW at 40 °C (1) • Operating temperature range: -25 °C to +250 °C • Protection IP00 to IP23 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Note (1) Max. permissible operating voltage UL = 600 V, EN 1000 VDC, testing voltage 2.7 kVAC 1 s, unforced cooling STANDARD ELECTRICAL SPECIFICATIONS MODEL RESISTANCE VALUE (1)(2)  TOLERANCE ±% VSGR050 0.1 to 54 10 VSGR100 0.2 to 75 10 VSGR150 0.2 to 51 10 VSGR200 0.
