VS-VSKT152-04PbF - Thyristor / Thyristor

VS-VSKT152-04PbF Description

www.vishay.com VS-VSKT152/04PbF Vishay Semiconductors Thyristor/Thyristor, 150 A (New INT-A-PAK Power Module) New INT-A-PAK PRODUCT SUMMARY IT(AV.

VS-VSKT152-04PbF Features

* Electrically isolated by DBC ceramic (AI2O3)
* 3500 VRMS isolating voltage
* Industrial standard package
* High surge capability
* Glass passivated chips
* Simple mounting
* UL approved file E78996
* Designed and qualified for multipl

VS-VSKT152-04PbF Applications

* Battery charges
* Welders
* Power converters MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IT(AV) IT(RMS) ITSM 85 °C 50 Hz 60 Hz 50 Hz I2t 60 Hz I2t VRRM TStg TJ Range Range VALUES 150 330 4000 4200 80 73 800 400 -40 to 150 -40 to 125 ELECTRICAL SPECI

📥 Download Datasheet

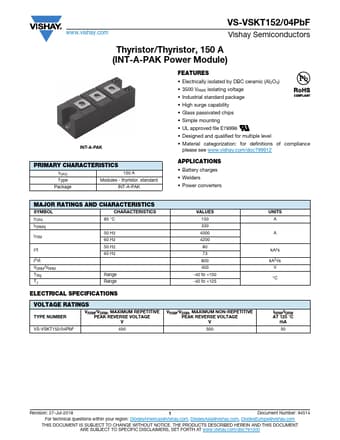

Preview of VS-VSKT152-04PbF PDF
datasheet Preview Page 2 datasheet Preview Page 3
