VS-VSKDS201-045 Power Modules Schottky Rectifier

Vishay

Description

www.vishay.com VS-VSKDS201/045 Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Schottky Rectifier, 100 A ADD-A-PAK PRODUCT SUMMARY IF.
The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct.

📥 Download Datasheet

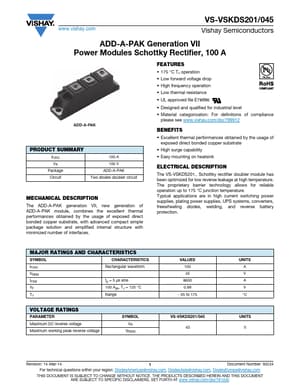

VS-VSKDS201-045 Datasheet Preview — Preview of VS-VSKDS201-045 PDF

Datasheet Specifications

Part number: VS-VSKDS201-045
Manufacturer: Vishay ↗
File Size: 168.92 KB
Datasheet: VS-VSKDS201-045-Vishay.pdf
Description: Power Modules Schottky Rectifier

Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* Low thermal resistance
* UL approved file E78996
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www

Applications

* are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection.     MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM tp = 5 μs sine VF 100 Apk, TJ =
