VS-ST230C - Phase Control Thyristors

VS-ST230C Description

www.vishay.com VS-ST230C Series Vishay Semiconductors Phase Control Thyristors (Hockey PUK Version), 410 A A-PUK (TO-200AB) PRIMARY CHARACTERISTIC.

VS-ST230C Features

* Center amplifying gate
* Metal case with ceramic insulator
* International standard case A-PUK (TO-200AB)
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 TYPICAL APPLI

VS-ST230C Applications

* DC motor controls
* Controlled DC power supplies
* AC controllers        MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IT(AV) IT(RMS) ITSM I2t VDRM/VRRM tq TJ Ths Ths 50 Hz 60 Hz 50 Hz 60 Hz Typical VALUES 410 55 780 25 5700 5970 163 149 400 to 20

📥 Download Datasheet

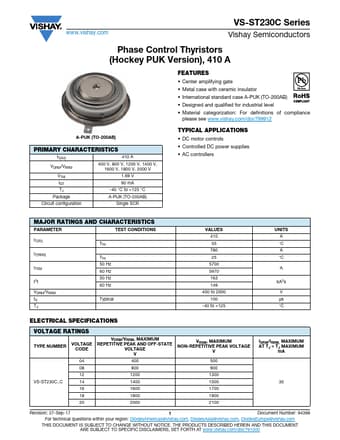

Preview of VS-ST230C PDF
datasheet Preview Page 2 datasheet Preview Page 3
