VS-ST110S12P1VPBF, VS-ST110S04 Phase Control Thyristors

Vishay

Description

www.vishay.com VS-ST110SPbF Series Vishay Semiconductors Phase Control Thyristors (Stud Version), 110 A TO-209AC (TO-94) PRODUCT SUMMARY IT(AV) VD.

📥 Download Datasheet

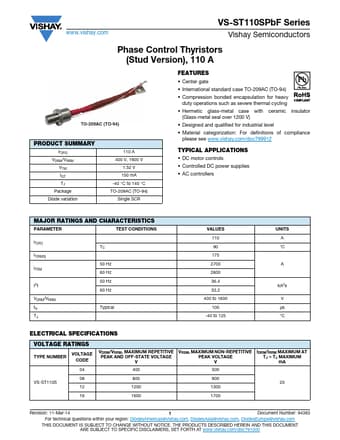

VS-ST110S12P1VPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-ST110S12P1VPBF, VS-ST110S04. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-ST110S12P1VPBF, VS-ST110S04
Manufacturer: Vishay ↗
File Size: 190.48 KB
Datasheet: VS-ST110S04-Vishay.pdf
Description: Phase Control Thyristors
Note: This datasheet PDF includes multiple part numbers: VS-ST110S12P1VPBF, VS-ST110S04.
Please refer to the document for exact specifications by model.

Features

* Center gate
* International standard case TO-209AC (TO-94)
* Compression bonded encapsulation for heavy duty operations such as severe thermal cycling
* Hermetic glass-metal case with ceramic insulator (Glass-metal seal over 1200 V)
* Designed and qualified

Applications

* DC motor controls
* Controlled DC power supplies
* AC controllers     MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IT(AV) IT(RMS) ITSM I2t VDRM/VRRM tq TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Typical VALUES 110 90 175 2700 2830 36.4 33.2 400 to 1600 100 -40 t
