VS-ST110S04 - Phase Control Thyristors

VS-ST110S04 Description

www.vishay.com VS-ST110SPbF Series Vishay Semiconductors Phase Control Thyristors (Stud Version), 110 A TO-209AC (TO-94) PRODUCT SUMMARY IT(AV) VD.

VS-ST110S04 Features

* Center gate
* International standard case TO-209AC (TO-94)
* Compression bonded encapsulation for heavy duty operations such as severe thermal cycling
* Hermetic glass-metal case with ceramic insulator (Glass-metal seal over 1200 V)
* Designed and qualified

VS-ST110S04 Applications

* DC motor controls
* Controlled DC power supplies
* AC controllers     MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IT(AV) IT(RMS) ITSM I2t VDRM/VRRM tq TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Typical VALUES 110 90 175 2700 2830 36.4 33.2 400 to 1600 100 -40 t

📥 Download Datasheet

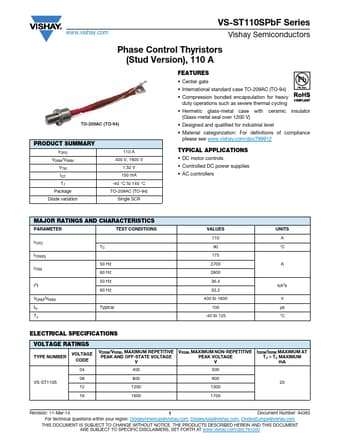

Preview of VS-ST110S04 PDF
datasheet Preview Page 2 datasheet Preview Page 3
