VS-ST103SP - Inverter Grade Thyristors

VS-ST103SP Description

www.vishay.com VS-ST103SP Series Vishay Semiconductors Inverter Grade Thyristors (Stud Version), 105 A TO-94 (TO-209AC) PRIMARY CHARACTERISTICS P.

VS-ST103SP Features

* All diffused design
* Center amplifying gate
* Guaranteed high dV/dt
* Guaranteed high dI/dt
* High surge current capability
* Low thermal impedance
* High speed performance
* Compression bonding
* Designed and qualified for i

VS-ST103SP Applications

* Inverters
* Choppers
* Induction heating
* All types of force-commutated converters MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IT(AV) IT(RMS) ITSM I2t VDRM/VRRM tq TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 105 85 165 3000 3150 45 41 400 to 80

📥 Download Datasheet

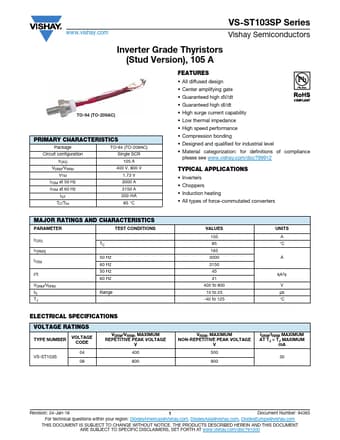

Preview of VS-ST103SP PDF
