VS-SD700C36L, VS-SD700C30L Standard Recovery Diodes

Vishay

Description

www.vishay.com VS-SD700C..L Series Vishay Semiconductors Standard Recovery Diodes, (Hockey PUK Version), 700 A B-PUK (DO-200AB) PRIMARY CHARACTERI.

📥 Download Datasheet

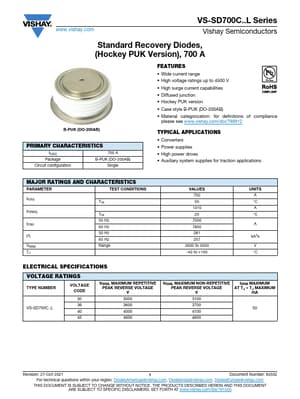

VS-SD700C36L Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-SD700C36L, VS-SD700C30L. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-SD700C36L, VS-SD700C30L
Manufacturer: Vishay ↗
File Size: 180.44 KB
Datasheet: VS-SD700C30L-Vishay.pdf
Description: Standard Recovery Diodes
Note: This datasheet PDF includes multiple part numbers: VS-SD700C36L, VS-SD700C30L.
Please refer to the document for exact specifications by model.

Features

* Wide current range
* High voltage ratings up to 4500 V
* High surge current capabilities
* Diffused junction
* Hockey PUK version
* Case style B-PUK (DO-200AB)
* Material categorization: for definitions of compliance please see www. vishay. com

Applications

* Converters
* Power supplies
* High power drives
* Auxiliary system supplies for traction applications MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) Ths IF(RMS) IFSM I2t VRRM TJ Ths 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 700 55 1310 25 7500
