VS-SD2500C12K Standard Recovery Diodes

VS-SD2500C12K Description

www.vishay.com VS-SD2500C..K Series Vishay Semiconductors Standard Recovery Diodes, (Hockey PUK Version), 3000 A K-PUK (DO-200AC) PRIMARY CHARACTE.

VS-SD2500C12K Features

* Wide current range
* High voltage ratings up to 2500 V
* High surge current capabilities
* Diffused junction
* Hockey PUK version
* Case style K-PUK (DO-200AC)
* Material categorization: for definitions of compliance please see www. vishay. com

VS-SD2500C12K Applications

* Converters
* Power supplies
* Machine tool controls
* High power drives
* Medium traction applications MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) Ths IF(RMS) IFSM I2t VRRM TJ Ths 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 3000 55 50

📥 Download Datasheet

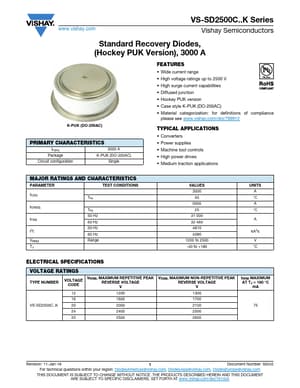

Preview of VS-SD2500C12K PDF
datasheet Preview Page 2 datasheet Preview Page 3
