VS-SD1500C30L, VS-SD1500C04L Standard Recovery Diodes

Vishay

Description

www.vishay.com VS-SD1500C..L Series Vishay Semiconductors Standard Recovery Diodes, (Hockey PUK Version), 1600 A B-PUK (DO-200AB) PRIMARY CHARACTE.

📥 Download Datasheet

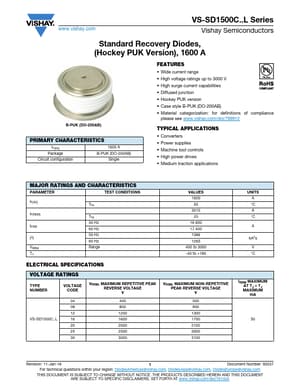

VS-SD1500C30L Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-SD1500C30L, VS-SD1500C04L. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-SD1500C30L, VS-SD1500C04L
Manufacturer: Vishay ↗
File Size: 154.50 KB
Datasheet: VS-SD1500C04L-Vishay.pdf
Description: Standard Recovery Diodes
Note: This datasheet PDF includes multiple part numbers: VS-SD1500C30L, VS-SD1500C04L.
Please refer to the document for exact specifications by model.

Features

* Wide current range
* High voltage ratings up to 3000 V
* High surge current capabilities
* Diffused junction
* Hockey PUK version
* Case style B-PUK (DO-200AB)
* Material categorization: for definitions of compliance please see www. vishay. com

Applications

* Converters
* Power supplies
* Machine tool controls
* High power drives
* Medium traction applications MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) IF(RMS) IFSM I2t VRRM TJ Ths Ths 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 1600 55 3010
