VS-SD1100C20C, VS-SD1100C04C Standard Recovery Diodes

Vishay

Description

www.vishay.com VS-SD1100C..C Series Vishay Semiconductors Standard Recovery Diodes (Hockey PUK Version), 1400 A B-43 PRIMARY CHARACTERISTICS IF(AV.

📥 Download Datasheet

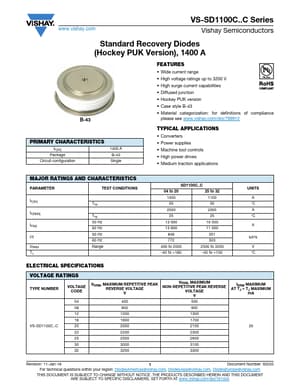

VS-SD1100C20C Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-SD1100C20C, VS-SD1100C04C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-SD1100C20C, VS-SD1100C04C
Manufacturer: Vishay ↗
File Size: 188.05 KB
Datasheet: VS-SD1100C04C-Vishay.pdf
Description: Standard Recovery Diodes
Note: This datasheet PDF includes multiple part numbers: VS-SD1100C20C, VS-SD1100C04C.
Please refer to the document for exact specifications by model.

Features

* Wide current range
* High voltage ratings up to 3200 V
* High surge current capabilities
* Diffused junction
* Hockey PUK version
* Case style B-43
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 T

Applications

* Converters
* Power supplies
* Machine tool controls
* High power drives
* Medium traction applications MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) IF(RMS) IFSM I2t VRRM TJ Ths Ths 50 Hz 60 Hz 50 Hz 60 Hz Range SD1100C. . C 04 to 2
