VS-SD1053C30S30L, VS-SD1053C18S20L - Fast Recovery Diodes

Vishay

📥 Download Datasheet

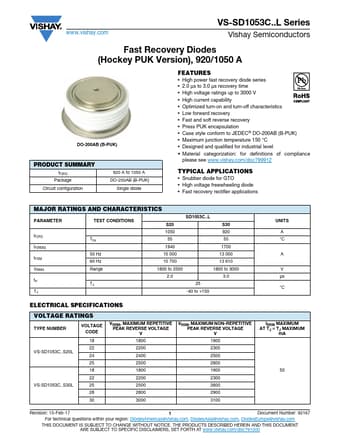

VS-SD1053C30S30L Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-SD1053C30S30L, VS-SD1053C18S20L. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VS-SD1053C30S30L, VS-SD1053C18S20L
Manufacturer: Vishay ↗
File Size: 470.26 KB
Datasheet: VS-SD1053C18S20L-Vishay.pdf
Description: Fast Recovery Diodes
Note: This datasheet PDF includes multiple part numbers: VS-SD1053C30S30L, VS-SD1053C18S20L.
Please refer to the document for exact specifications by model.

VS-SD1053C30S30L Product details

Features

High power fast recovery diode series.
2.0 µs to 3.0 µs recovery time.
High voltage ratings up to 3000 V.
High current capability.
Optimized turn-on and turn-off characteristics.
Low forward recovery.
Fast and soft reverse recovery.
Press PUK encapsulation.
Case style conform to JEDEC® DO-200AB (B-PUK).
Maximum junction temperature 150 °C.
Designed and qualified for industrial level.
Mate.
