VS-GT55LA120UX IGBT

VS-GT55LA120UX Description

www.vishay.com VS-GT55LA120UX Vishay Semiconductors “Low Side Chopper” IGBT SOT-227 (Trench IGBT), 47 A SOT-227 PRIMARY CHARACTERISTICS VCES IC D.

VS-GT55LA120UX Features

* Trench IGBT technology
* Square RBSOA
* HEXFRED® clamping diode
* Positive VCE(on) temperature coefficient
* Fully isolated package
* Speed 8 kHz to 60 kHz
* Very low internal inductance (≤ 5 nH typical)
* Industry standard outline

📥 Download Datasheet

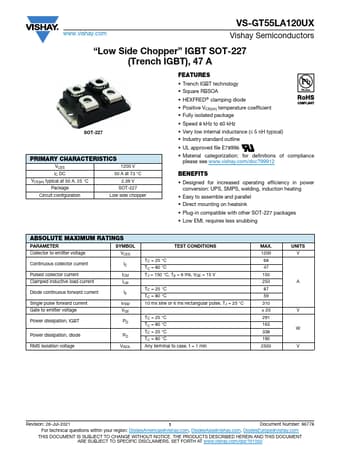

Preview of VS-GT55LA120UX PDF
