VS-8EWS16SLHM3 High Voltage Surface Mount Input Rectifier Diode

VS-8EWS16SLHM3 Description

www.vishay.com VS-8EWS16SLHM3 Vishay Semiconductors High Voltage Surface Mount Input Rectifier Diode, 8 A 2 3 1 DPAK (TO-252AA) Base cathode 2 1 .
The VS-8EWS16SLHM3 rectifier high voltage series has been optimized for very low forward voltage drop, with moderate leakage.

VS-8EWS16SLHM3 Features

* Glass passivated pellet chip junction
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* AEC-Q101 qualified
* Meets JESD 201 class 2 whisker test
* Flexible solution for reliable AC power rectification
* High surge, low VF rugged blockin

VS-8EWS16SLHM3 Applications

* On-board and off-board EV / HEV battery chargers

📥 Download Datasheet

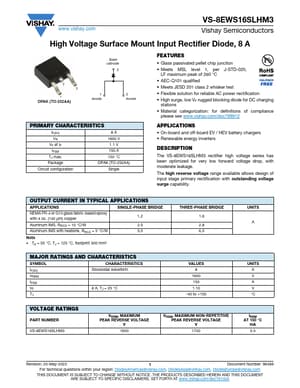

Preview of VS-8EWS16SLHM3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-8EWS16SLHM3
Manufacturer
Vishay ↗
File Size
153.62 KB
Datasheet
VS-8EWS16SLHM3-Vishay.pdf
Description
High Voltage Surface Mount Input Rectifier Diode
