VS-81CNQ040APbF, VS-81CNQ035APbF - Schottky Rectifier

Vishay

📥 Download Datasheet

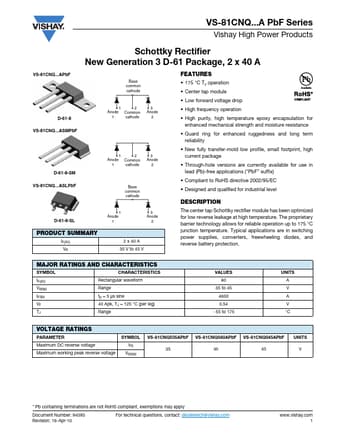

VS-81CNQ040APbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-81CNQ040APbF, VS-81CNQ035APbF. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VS-81CNQ040APbF, VS-81CNQ035APbF
Manufacturer	Vishay ↗
File Size	154.39 KB
Description	Schottky Rectifier
Datasheet	VS-81CNQ035APbF-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VS-81CNQ040APbF, VS-81CNQ035APbF. Please refer to the document for exact specifications by model.

VS-81CNQ040APbF Product details

Description

The center tap Schottky rectifier module has been optimized for low reverse leakage at high temperature.

Features

175 °C TJ operation.
Center tap module.
Low forward voltage drop.
High frequency operation.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
Guard ring for enhanced ruggedness and long term reliability.
New fully transfer-mold low profile, small footprint, high current package.
Through-hole versions are currently available for use in lead (Pb)-free.
