VS-50WQ10FNHM3 5.5A High Performance Schottky Rectifier

VS-50WQ10FNHM3 Description

www.vishay.com VS-50WQ10FNHM3 Vishay Semiconductors High Performance Schottky Rectifier, 5.5 A 2 3 1 DPAK (TO-252AA) Base cathode 4, 2 1 Anode 3.
The VS-50WQ10FNHM3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board.

VS-50WQ10FNHM3 Features

* Low forward voltage drop
* Guard ring for enhanced ruggedness and long term reliability
* Popular DPAK outline
* Small foot print, surface mountable
* High frequency operation
* AEC-Q101 qualified
* Meets JESD 201 class 2 whisker test

VS-50WQ10FNHM3 Applications

* requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular wavefor

📥 Download Datasheet

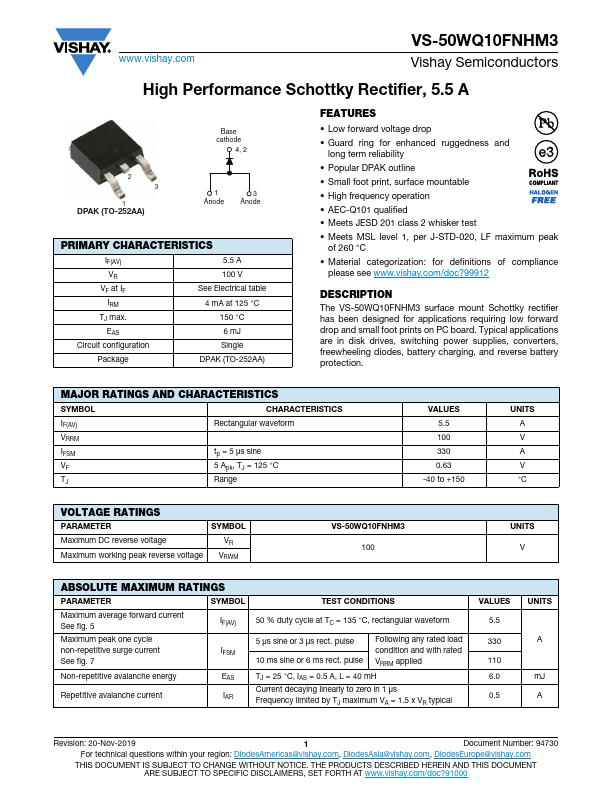

Preview of VS-50WQ10FNHM3 PDF

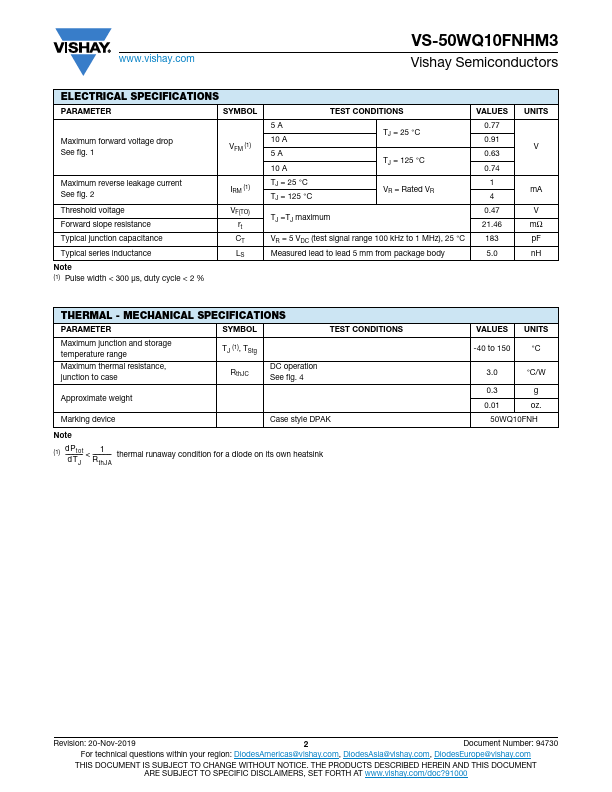

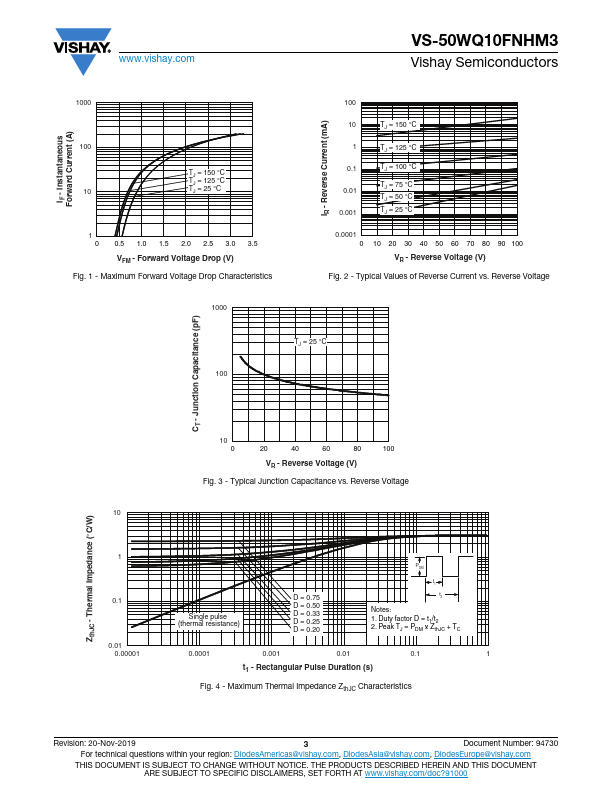

datasheet Preview Page 2 datasheet Preview Page 3
