VS-3EGH06-M3 Hyperfast Rectifier

📥 Download Datasheet Datasheet Preview Page 1

Description

www.vishay.com VS-3EGH06-M3 Vishay Semiconductors Hyperfast Rectifier, 3 A FRED Pt® DO-214AA (SMB) Cathode Anode PRODUCT SUMMARY Package IF(AV) .
/ APPLICATIONS State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, an.

📥 Download Datasheet

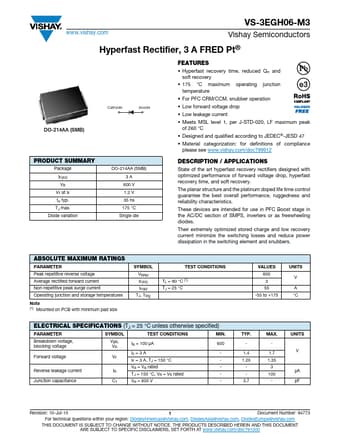

Preview of VS-3EGH06-M3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Hyperfast recovery time, reduced Qrr and soft recovery
* 175 °C maximum operating junction temperature
* For PFC CRM/CCM, snubber operation
* Low forward voltage drop
* Low leakage current
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Applications

* State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characterist
