VS-30WQ04FNPbF - High Performance Schottky Rectifier

VS-30WQ04FNPbF Description

www.vishay.com VS-30WQ04FNPbF Vishay Semiconductors High Performance Schottky Rectifier, 3.5 A Base cathode 4, 2 D-PAK (TO-252AA) 1 Anode 3 Anod.
The VS-30WQ04FNPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board.

VS-30WQ04FNPbF Features

* Popular D-PAK outline
* Small foot print, surface mountable
* Low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* M

VS-30WQ04FNPbF Applications

* requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rectangul

📥 Download Datasheet

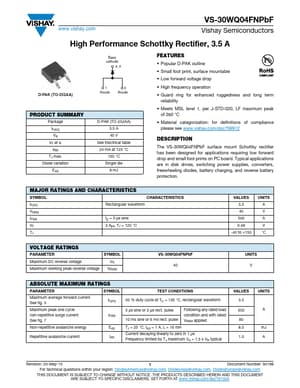

Preview of VS-30WQ04FNPbF PDF
