VS-30CTQ050SPbF - Schottky Rectifier

Vishay

📥 Download Datasheet

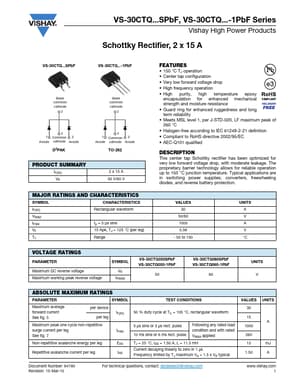

VS-30CTQ050SPbF Datasheet Preview — Preview of VS-30CTQ050SPbF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VS-30CTQ050SPbF
Manufacturer: Vishay ↗
File Size: 120.67 KB
Datasheet: VS-30CTQ050SPbF-Vishay.pdf
Description: Schottky Rectifier

VS-30CTQ050SPbF Product details

Description

This center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

Features

150 °C TJ operation.
Center tap configuration.
Very low forward voltage drop.
High frequency operation.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
Guard ring for enhanced ruggedness and long term reliability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Halogen-free according to IEC 61249-2-21 definition.
Compliant to RoHS directive 20.
