VS-30APF10-M3, VS-30EPF10-M3 Fast Soft Recovery Rectifier Diode

VS-30APF10-M3 Description

www.vishay.com VS-30.PF1.-M3 Series Vishay Semiconductors Fast Soft Recovery Rectifier Diode, 30 A 1 3 TO-247AC 2L Base cathode 2 1 2 3 TO-247AC .
The VS-35EPF12LHM3 and VS-35APF12LHM3 soft recovery rectifier series has been optimized for combined short reverse recovery time and low forward volta.

VS-30APF10-M3 Features

* Glass passivated pellet chip junction
* 150 °C max. operating junction temperature
* Low forward voltage drop and short reverse recovery time
* Designed and qualified according to JEDEC®-JESD 47 Available
* Material categorization: for definitions of c

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-30APF10-M3, VS-30EPF10-M3. Please refer to the document for exact specifications by model.

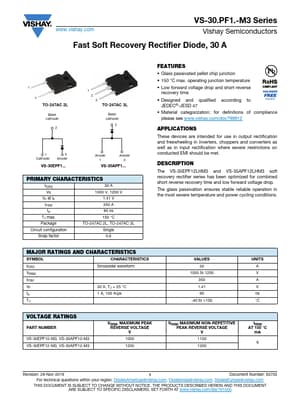

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-30APF10-M3, VS-30EPF10-M3
Manufacturer
Vishay ↗
File Size
257.91 KB
Datasheet
VS-30EPF10-M3-Vishay.pdf
Description
Fast Soft Recovery Rectifier Diode
Note
This datasheet PDF includes multiple part numbers: VS-30APF10-M3, VS-30EPF10-M3.
Please refer to the document for exact specifications by model.
