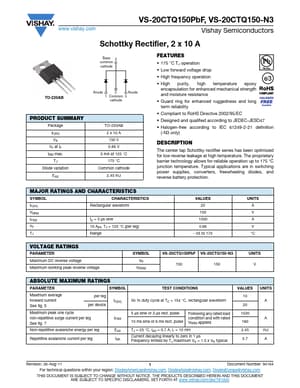

VS-20CTQ150PbF Datasheet Preview — Preview of VS-20CTQ150PbF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VS-20CTQ150PbF
Manufacturer: Vishay ↗
File Size: 154.80 KB
Datasheet: VS-20CTQ150PbF-Vishay.pdf
Description: Schottky Rectifier

VS-20CTQ150PbF Product details

Description

The center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

Features

175 °C TJ operation.
Low forward voltage drop.
High frequency operation.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
Guard ring for enhanced ruggedness and long term reliability.
Compliant to RoHS Directive 2002/95/EC.
Designed and qualified according to JEDEC-JESD47.
Halogen-free according to IEC 61249-2-21 definition (-N3 only).
