VS-209CNQ150PbF, VS-209CNQ135PbF High Performance Schottky Rectifiers

VS-209CNQ150PbF Description

www.vishay.com VS-209CNQPbF Series Vishay Semiconductors High Performance Schottky Rectifier, 200 A TO-244 Lug terminal anode 1 Lug terminal anod.
/ APPLICATIONS The VS-209CNQ center tap Schottky rectifier module series has been optimized for low reverse leakage at high temperature.

VS-209CNQ150PbF Features

* 175 °C TJ operation
* Center tap module
* Low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* UL approved file E222165
* Designed and qualified for industrial level
* Ma

VS-209CNQ150PbF Applications

* The VS-209CNQ center tap Schottky rectifier module series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in high current switching power supplies, plating pow

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-209CNQ150PbF, VS-209CNQ135PbF. Please refer to the document for exact specifications by model.

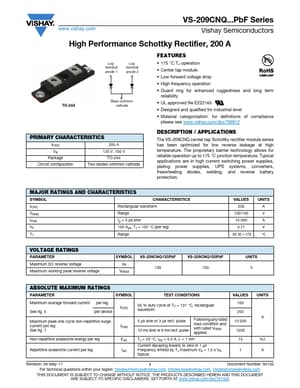

datasheet Preview Page 2 datasheet Preview Page 3
