VS-18TQ035-N3, VS-18TQ035PbF Schottky Rectifier

Vishay

Description

VS-18TQ0..PbF Series, VS-18TQ0..-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 18 A Base cathode 2 TO-220AC PRODUCT SUMMARY .
The VS-18TQ Schottky rectifier series has been optimized for low reverse leakage at high temperature.

📥 Download Datasheet

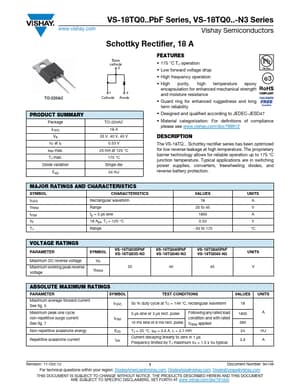

VS-18TQ035-N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-18TQ035-N3, VS-18TQ035PbF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-18TQ035-N3, VS-18TQ035PbF
Manufacturer: Vishay ↗
File Size: 159.94 KB
Datasheet: VS-18TQ035PbF-Vishay.pdf
Description: Schottky Rectifier
Note: This datasheet PDF includes multiple part numbers: VS-18TQ035-N3, VS-18TQ035PbF.
Please refer to the document for exact specifications by model.

Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* De

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform Range tp = 5 μs sine 18 Apk, TJ = 125 °C Range VALUES 18 35 to 45 1800 0.53 - 55 to 175 UNITS
