VS-12TQ040PbF, VS-12TQ035PbF Schottky Rectifier

Vishay

Description

www.vishay.com VS-12TQPbF Series, VS-12TQ-N3 Series Vishay Semiconductors Schottky Rectifier, 15 A Base cathode 2 TO-220AC PRODUCT SUMMARY Package.
The VS-12TQ Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

📥 Download Datasheet

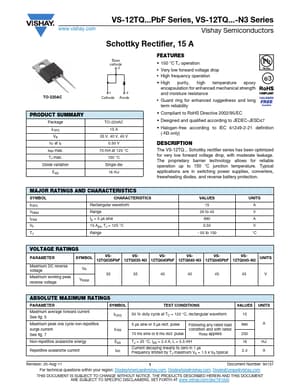

VS-12TQ040PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-12TQ040PbF, VS-12TQ035PbF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-12TQ040PbF, VS-12TQ035PbF
Manufacturer: Vishay ↗
File Size: 160.56 KB
Datasheet: VS-12TQ035PbF-Vishay.pdf
Description: Schottky Rectifier
Note: This datasheet PDF includes multiple part numbers: VS-12TQ040PbF, VS-12TQ035PbF.
Please refer to the document for exact specifications by model.

Features

* 150 °C TJ operation
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM Range IFSM tp = 5 μs sine VF 15 Apk, TJ = 125 °C TJ Range VALUES 15 35 to 45 990 0.50 - 55 to 150 UNI
