VS-12F10 Standard Recovery Diodes

VS-12F10 Description

www.vishay.com VS-12F(R) Series Vishay Semiconductors Standard Recovery Diodes, (Stud Version), 12 A DO-4 (DO-203AA) PRIMARY CHARACTERISTICS IF(A.

VS-12F10 Features

* High surge current capability
* Stud cathode and stud anode version
* Wide current range
* Types up to 1200 V VRRM
* Designed and qualified for industrial and consumer level
* Material categorization: for definitions of compliance please see www. vish

VS-12F10 Applications

* Battery charges
* Converters
* Power supplies
* Machine tool controls MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) IF(RMS) IFSM I2t VRRM TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 12 144 19 265 280 351 320 100 to 1200 -65 to +175 UNITS A

📥 Download Datasheet

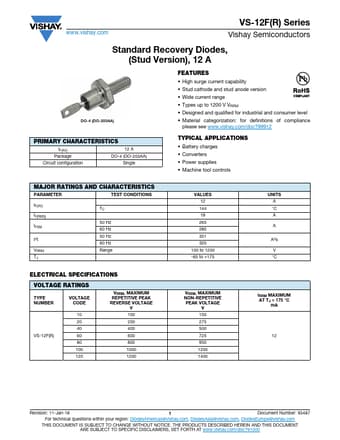

Preview of VS-12F10 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-12F10
Manufacturer
Vishay ↗
File Size
156.64 KB
Datasheet
VS-12F10-Vishay.pdf
Description
Standard Recovery Diodes
