VS-12CWQ04FN-M3 - Schottky Rectifier

VS-12CWQ04FN-M3 Description

VS-12CWQ04FN-M3 Vishay Semiconductors Schottky Rectifier, 2 x 6 A Base common cathode 4 D-PAK (TO-252AA) PRODUCT SUMMARY Package IF(AV) VR VF at IF .
The VS-12CWQ04FN-M3 surface mount, center tap, Schottky rectifier series has been designed for applications requiring low forward drop and small foot.

VS-12CWQ04FN-M3 Features

* Low forward voltage drop
* Guard ring for enhanced ruggedness and long term reliability
* Halogen-free according to IEC 61249-2-21 definition
* Popular D-PAK outline
* Center tap configuration
* Small foot print, surface mountable
* High freq

VS-12CWQ04FN-M3 Applications

* requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rec

📥 Download Datasheet

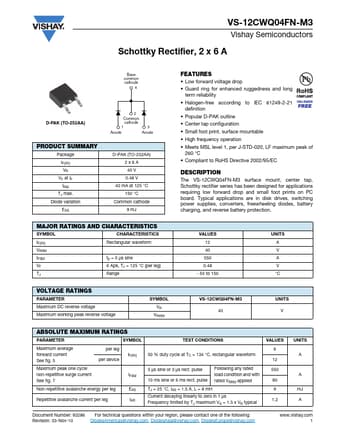

Preview of VS-12CWQ04FN-M3 PDF
