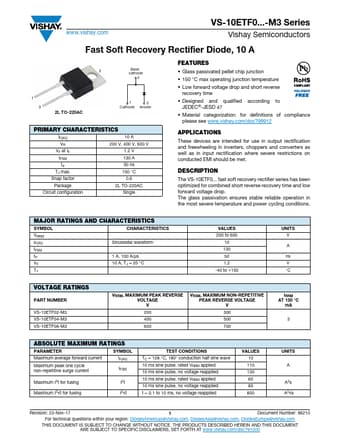

www.vishay.com
VS-10ETF0...-M3 Series
Vishay Semiconductors
Fast Soft Recovery Rectifier Diode, 10 A
2
Base cathode
2
1 3
2L TO-220AC
13 Cathode Anode
PRIMARY CHARACTERISTICS
IF(AV) VR VF at IF IFSM trr TJ max. Snap factor
10 A 200 V, 400 V, 600 V
1.2 V 130 A 50 ns 150 °C
0.6
Package
2L TO-220AC
Circuit configuration
Single
FEATURES
• Glass passivated pellet chip junction • 150 °C max operating junction temperature • Low forward voltage drop and short reverse
recovery time • Designed and qualified according to
JEDEC®-JESD 47 • Material categorization: for definitions of compliance
please see www.vishay.
