VS-10BQ100PbF Schottky Rectifier

VS-10BQ100PbF Description

www.vishay.com VS-10BQ100PbF Vishay Semiconductors High Performance Schottky Rectifier, 1 A Cathode Anode SMB PRODUCT SUMMARY Package IF(AV) VR V.
The VS-10BQ100PbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boar.

VS-10BQ100PbF Features

* Small foot print, surface mountable
* Low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* Material categorization: for defi

VS-10BQ100PbF Applications

* requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rec

📥 Download Datasheet

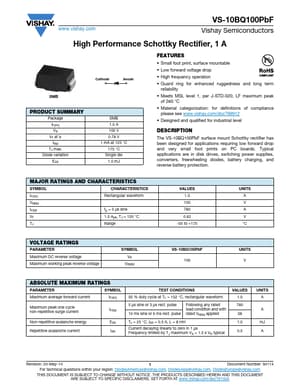

Preview of VS-10BQ100PbF PDF
