VQ1000P - N-Channel 60V MOSFET

Product Overview

Vishay

Part number	VQ1000P
Manufacturer	Vishay
File Size	92.84 KB
Description	N-Channel 60V MOSFET
Datasheet	VQ1000P Datasheet
Note	This datasheet PDF includes multiple part numbers: VQ1000P, VQ1000J. Please refer to the document for exact specifications by model.

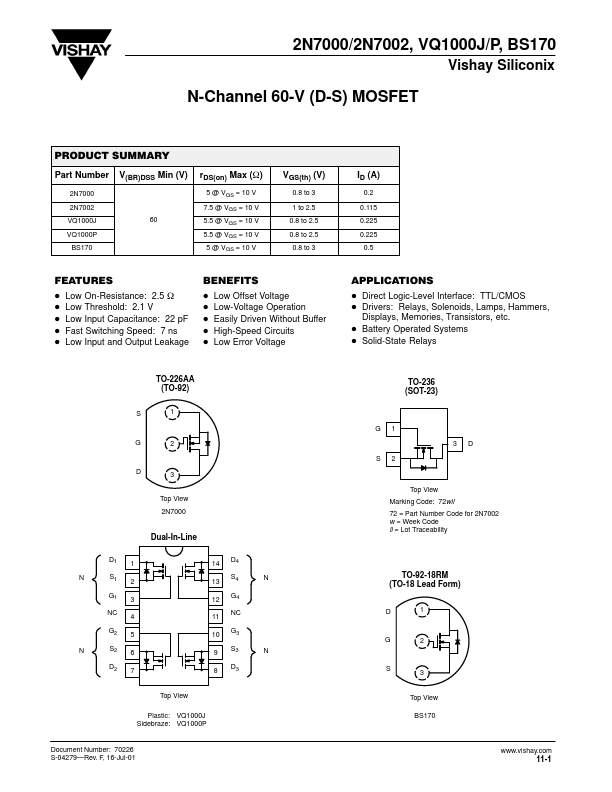

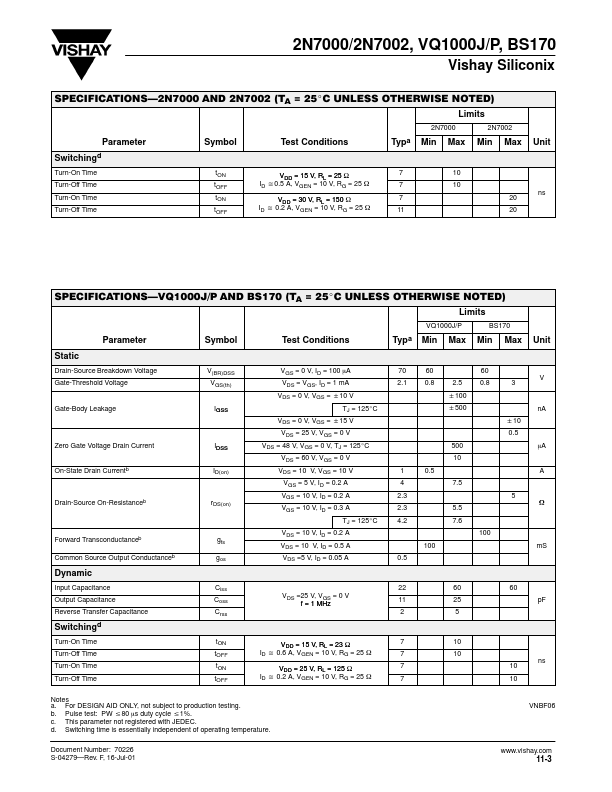

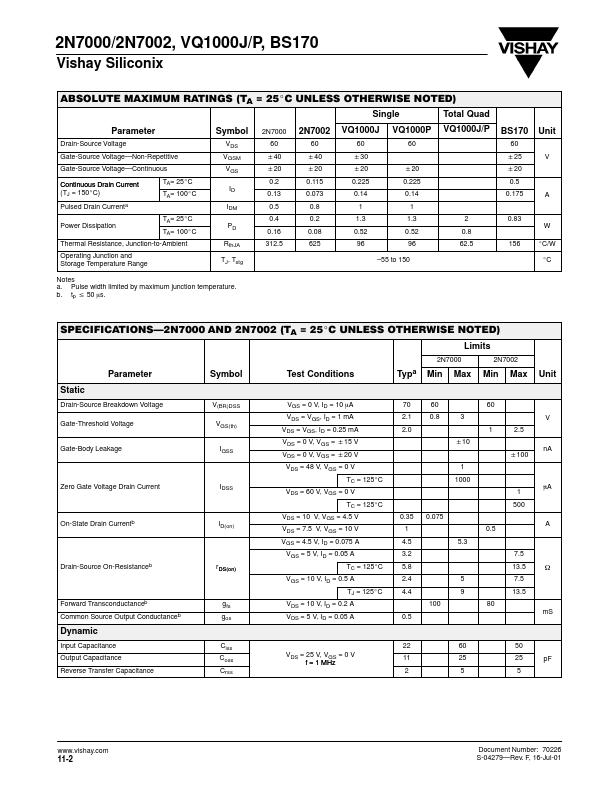

Additional preview pages of the VQ1000P datasheet.

D Low On-Resistance: 2.5 W D Low Threshold: 2.1 V D Low Input Capacitance: 22 pF D Fast Switching Speed: 7 ns D Low Input and Output Leakage.
