VO0661T - High-Speed Optocoupler

Download the VO0661T datasheet PDF. This datasheet also covers the VO0600T variant, as both devices belong to the same high-speed optocoupler family and are provided as variant models within a single manufacturer datasheet.

Description

The VO06xxT family are single and dual channel 10 MBd optocoupler utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector.

Features

  • Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 1 kV/μs.
  • High speed: 10 MBd typical.
  • + 5 V CMOS compatibility.
  • Pure tin leads.
  • Guaranteed AC and DC performance over temperature: - 40 °C to + 100 °C temp. range.
  • Meets IEC 60068-2-42 (SO2) and IEC 60068-2-43 (H2S) requirements.
  • Low input current capability: 5 mA.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VO0600T-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VO0661T
Manufacturer Vishay
File Size 184.43 KB
Description High-Speed Optocoupler
Datasheet download datasheet VO0661T Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Vishay

Part Number Description
VO0600T High-Speed Optocoupler
VO0601T High-Speed Optocoupler
VO0611T High-Speed Optocoupler
VO0630T High-Speed Optocoupler
VO0631T High-Speed Optocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

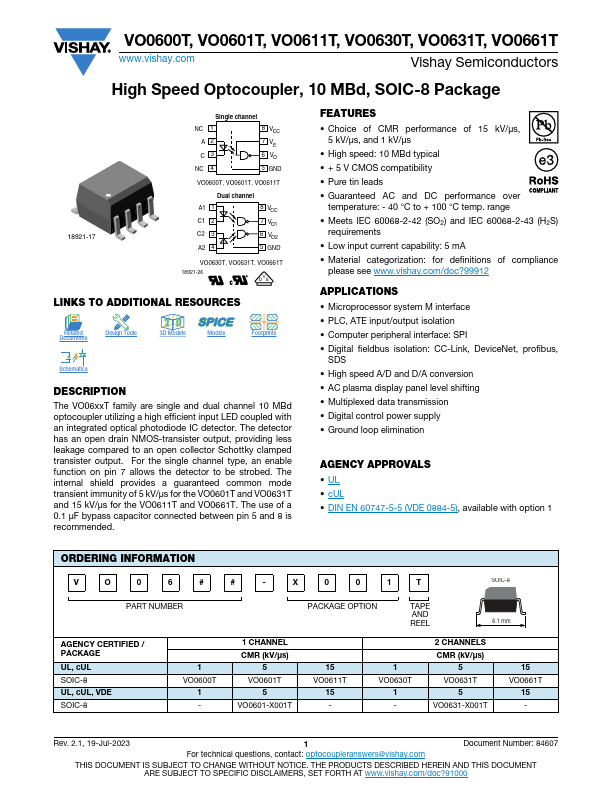

VO0600T, VO0601T, VO0611T, VO0630T, VO0631T, VO0661T www.vishay.com Vishay Semiconductors High Speed Optocoupler, 10 MBd, SOIC-8 Package 18921-17 Single channel NC 1 A2 C3 NC 4 8 VCC 7 VE 6 VO 5 GND VO0600T, VO0601T, VO0611T Dual channel A1 1 C1 2 C2 3 A2 4 8 VCC 7 VO1 6 VO2 5 GND VO0630T, VO0631T, VO0661T 18921-26 DVE LINKS TO ADDITIONAL RESOURCES Related Documents Design Tools 3D 3D 3D Models Models Footprints Schematics DESCRIPTION The VO06xxT family are single and dual channel 10 MBd optocoupler utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector. The detector has an open drain NMOS-transister output, providing less leakage compared to an open collector Schottky clamped transister output.
