VLDR1235R - Dome Lens SMD LED

Product Overview

Vishay

Datasheet Details

Part number	VLDR1235R
Manufacturer	Vishay
File Size	234.86 KB
Description	Dome Lens SMD LED
Datasheet	VLDR1235R Datasheet
Note	This datasheet PDF includes multiple part numbers: VLDR1235R, VLDS1235G. Please refer to the document for exact specifications by model.

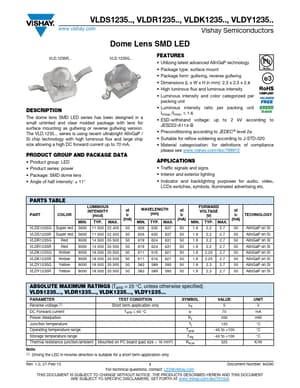

Additional preview pages of the VLDR1235R datasheet.

Product details

Description

The dome lens SMD LED series has been designed in a small untinted and clear molded package with lens for surface mounting as gullwing or reverse gullwing version. Product group: LED Product series: power Package: SMD dome lens Angle of half intensity: ± 11°

Features

Utilizing latest advanced AlInGaP technology.
Package type: surface mount.
Package form: gullwing, reverse gullwing.
Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.8.
High luminous flux and luminous intensity.
Luminous intensity and color categorized per packing unit.
Luminous intensity ratio per packing IVmax. /IVmin. ≤ 1.6.
ESD-wi.
